Page 4 - 10 TA3H, TA3SH & TA3.5SH
4. Description
4.9 Circuit Breakers & Audible Warning
Refer to Figure 4.9. Circuit breakers are located on the left hand side of the dashboard. A 15 amp
circuit breaker is fitted protecting the engine starting system. On machines with highway lighting
a second 30 amp circuit breaker is fitted.
In the event of a fault occurring the circuit breaker will trip out, this being indicated by the button
protruding out beyond its normal position.
Should this occur the reason for the overload should be investigated and the components at fault
replaced or repaired.
When the repair has been completed the circuit breaker should be reset by pressing the button
until it locks in position thus restoring the electrical supply.
The audible warning is fitted to warn the operator that the engine is overheating. If the alarm
sounds the machine must be parked safely and the engine stopped until the cause of the
overheating is determined.

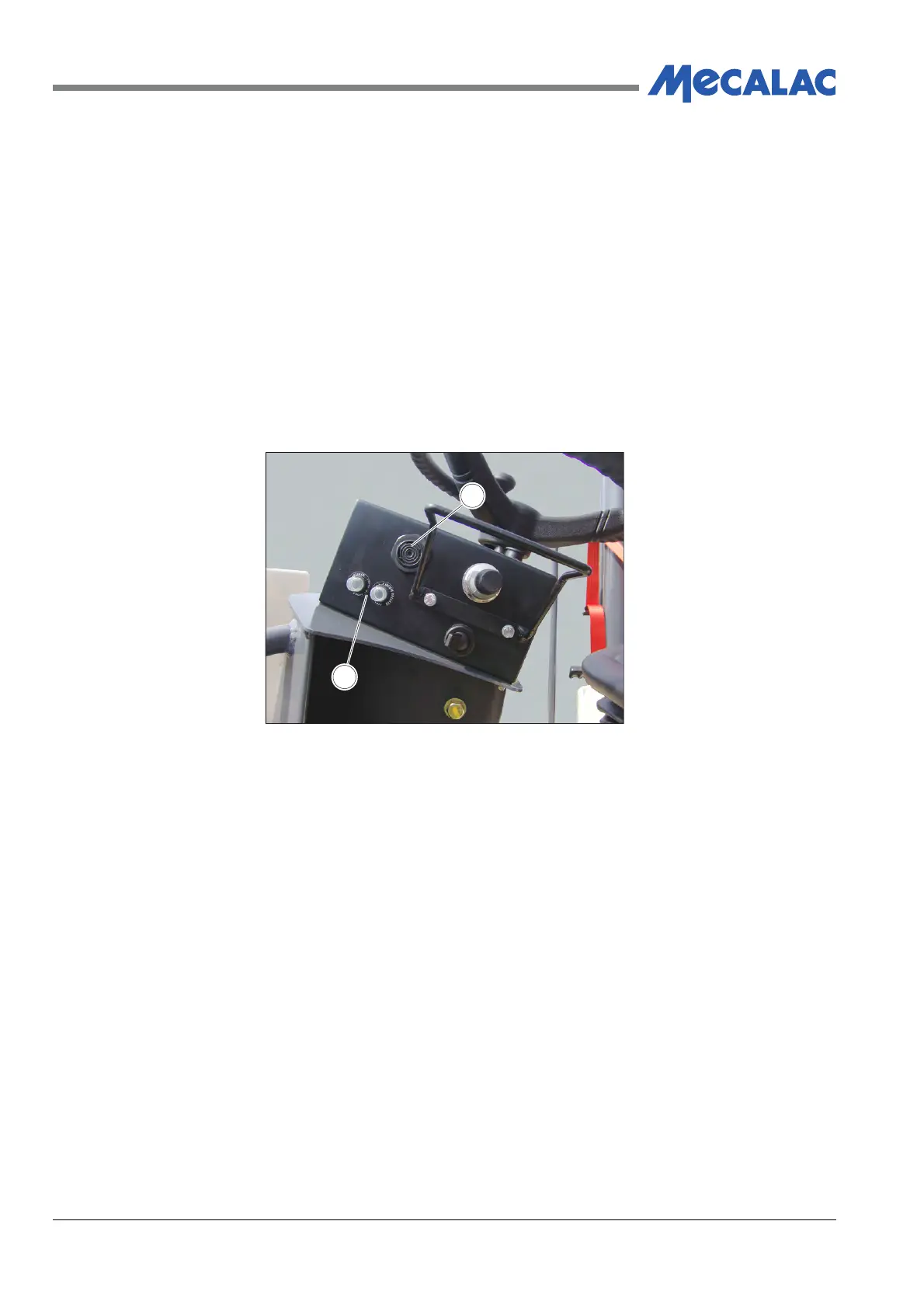

Figure 4.8 - Circuit Breakers & Audible Warning
1. Audible Warning
2. Circuit Breakers
1
2
COV0022
