TA3H, TA3SH & TA3.5SH Page 4 - 9
4. Description
4.8 Battery Isolator
The battery isolator; Figure 4.7, is both a maintenance aid and an anti-theft and vandalism
device. It has a removable key 1.
When carrying out any maintenance on the machine, the battery isolator key must be removed
to prevent the engine from being started or the electric circuit being activated.
When parking or leaving the machine, remove the battery isolator key to prevent unauthorised
people from using or stealing the machine.

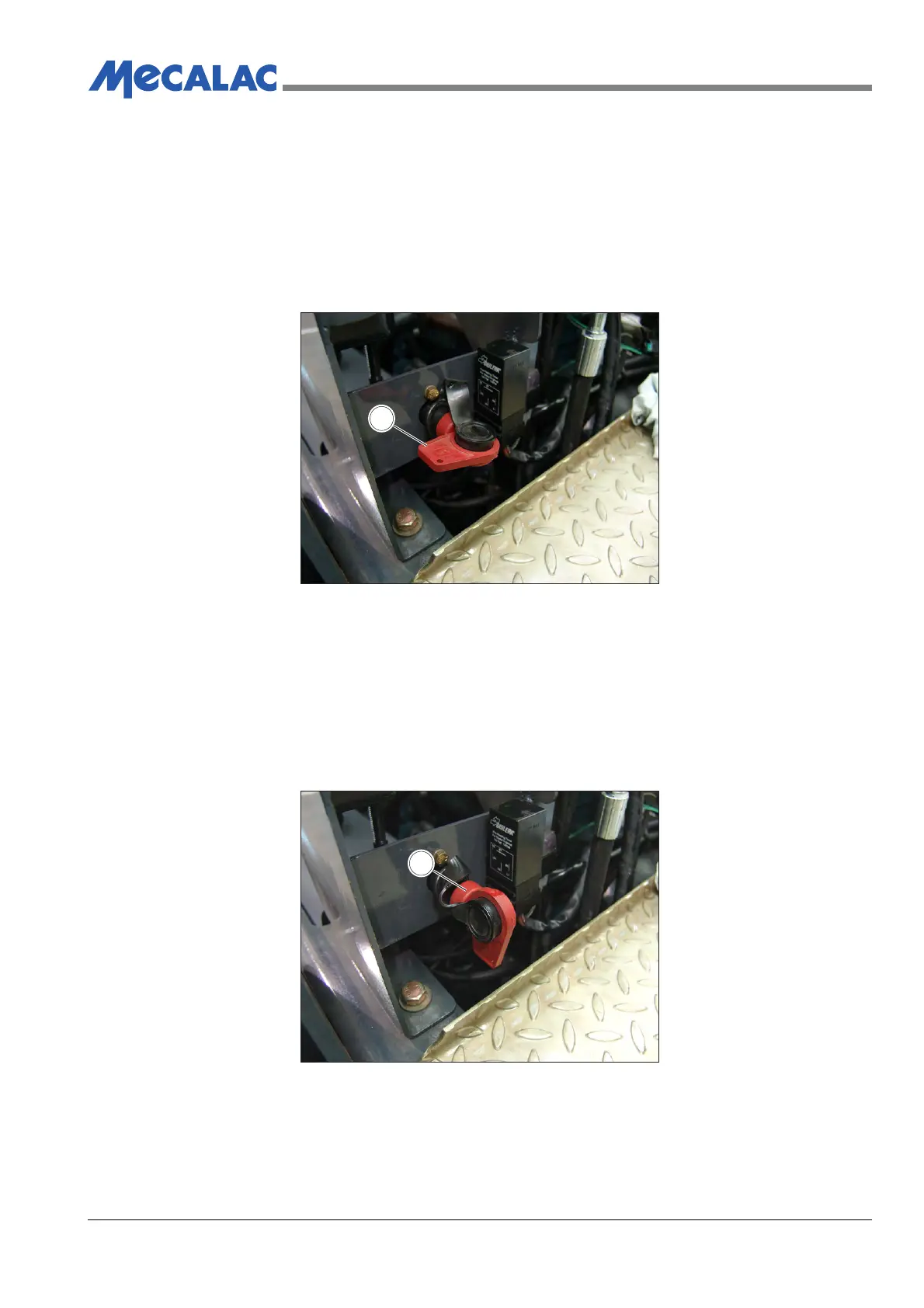

Figure 4.7 - Battery Isolator
(1) Operation
When the key is in the horizontal position the battery is supplying power to the machine and the
machine may be used normally.
Turning the key anti-clockwise to the vertical position - 2; Figure 4.8, disconnects the power
supply to the machine and allows the key to be removed from the isolator switch.
Figure 4.8 - Battery Isolator - OFF Position
1
COV0001
2
COV0001
