4. Description
4.19 Seat Belt
A seat belt is provided for the safety of the operator and must be worn at all times when operating
this equipment. It is prohibited to alter or modify a seat belt. Avoid twisting the webbing.
(1) Standard Seat Belt
This is a normal lap type seat belt Figure 4.22 refers.

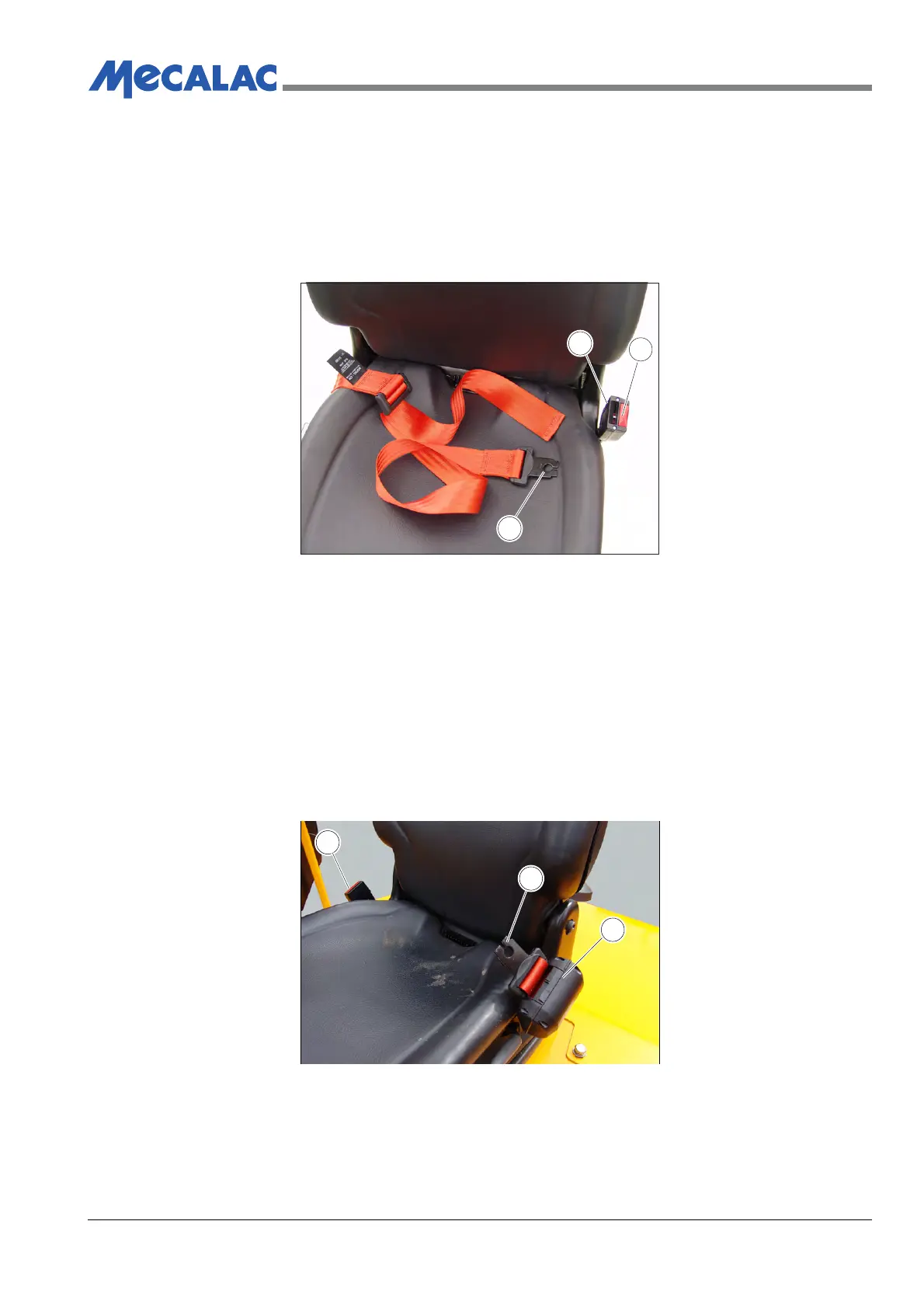

Figure 4.22 - Standard Seat Belt
1. Buckle
2. Button
3. Tongue
(2) Retracting Seat Belt with Green Beacon (Optional)
This type of belt retracts automatically when the release button is pressed and the tongue is
released. Figure 4.23 refers. When the tongue of the belt is inserted in the buckle and clicks into
place, a green beacon, Figure 4.24 located on the ROPS frame will flash indicating to site
management and others that the driver of the machine is correctly wearing their seat belt. The
engine will not start unless the operator is wearing the seat belt correctly.
Figure 4.23 - Automatically Retracting Seat Belt
1. Release Button
2. Tongue
3. Retractor Unit
