4. Description

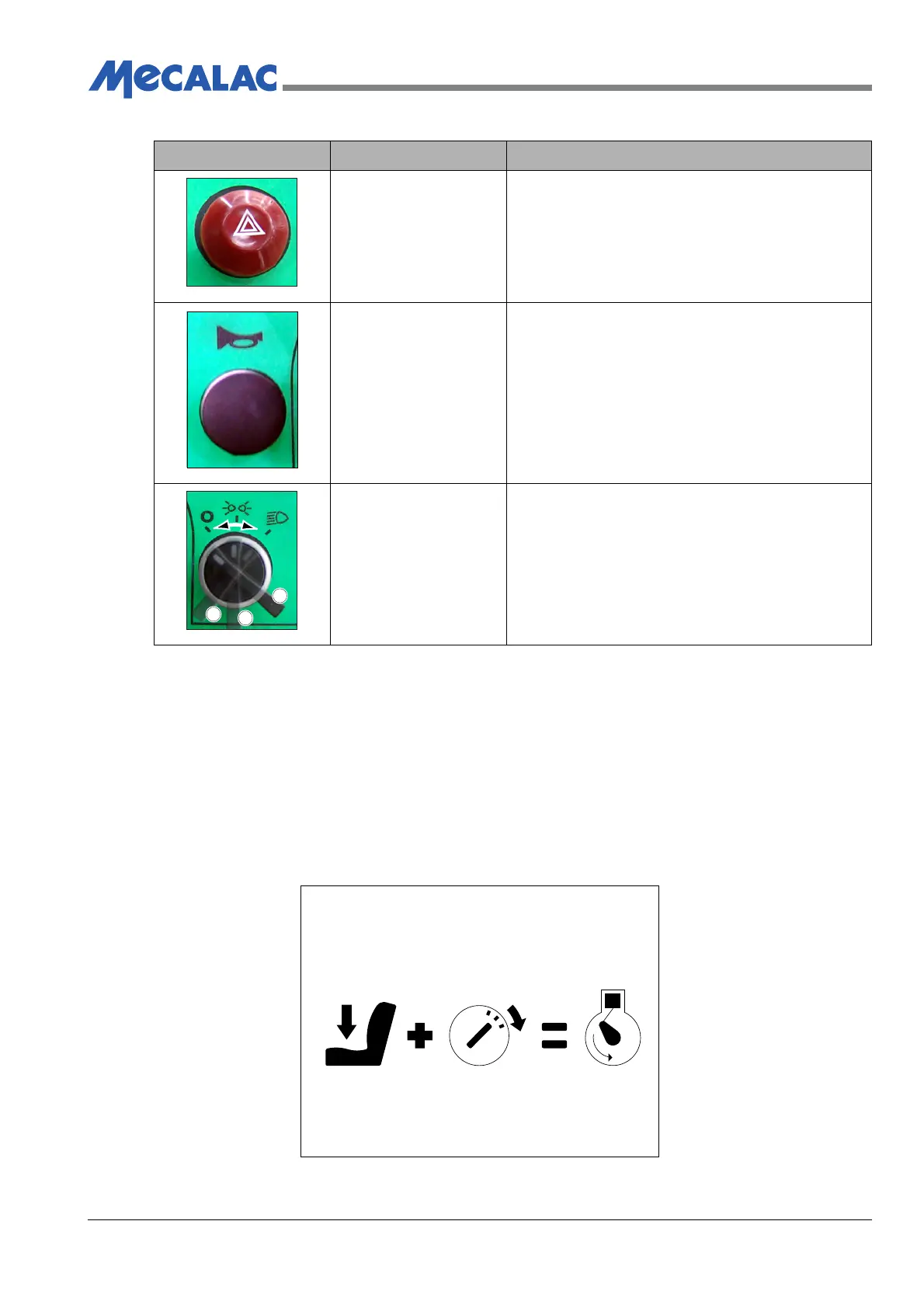

Table 4.2 - Switch Operation
4.12 Start Interlock
A interlock is fitted for safety purposes and prevents the engine from starting unless the operator
is sitting on the seat. This interlock comprises an inhibitor switch within the seat that is operated
when the operator is seated on the machine. If you attempt to start the machine without sitting
on the seat the engine will not start.
The symbol (1), on the dashboard decal - Figure 4.10, indicates the Operator must be seated to
deactivate the start inhibitor before starting the machine.
.
Figure 4.10 - Start Interlock Function
Switch Name Description
Hazard Light Switch Pressing the button will cause all four direction
indicator lights to begin flashing and will
continue to do so until the button is pressed
again
Horn Button When pressed, this button will cause the horn
to sound.
Light Switch Turning the switch clockwise from the OFF
position (A) to position (B) will cause the front
and rear side (marker) lights and the
registration plate lights to come on. Turning the
switch to the next position (C) will cause the
main headlights to come on.
A
B
C
COV00035
