4. Description

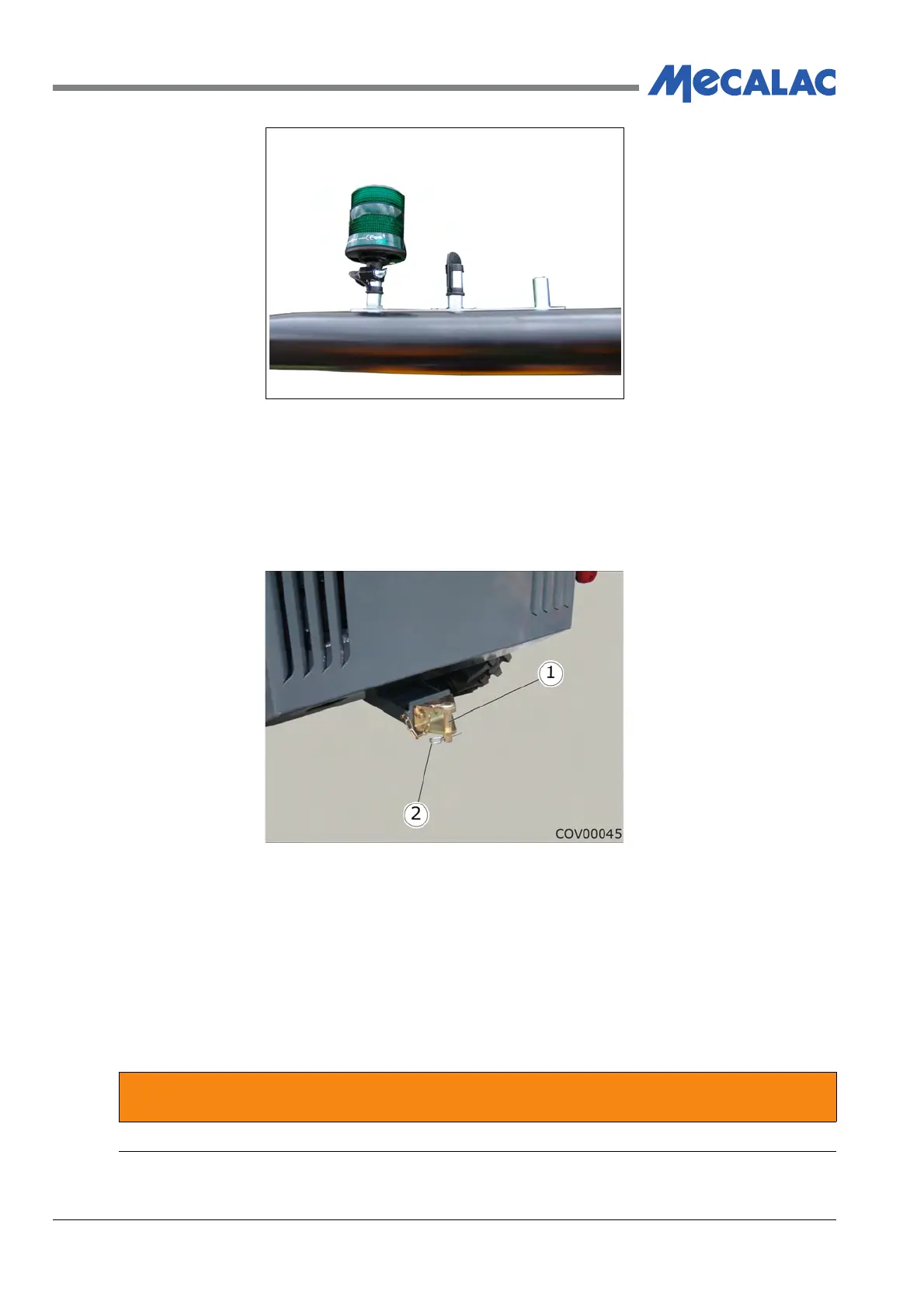

Figure 4.24 - Green Beacon - Seat Belt Warning
4.20 Tow Hitch
A tow hitch Figure 4.20 is provided primarily for recovery purposes. The machine has not been
designed for, and we do not recommend its use as a towing vehicle, but if so used always make
sure that the weight of the trailer and its load does not exceed half the rated payload of the
dumper.
Figure 4.20 - Tow Hitch
1. Pin
2. Grip Clip
It is important that if the machine is used for towing:
• The skip is loaded with half the rated payload to provide adhesion when braking.
• The machine must NEVER be driven down a gradient as “jackknifing” may occur.
• Only “low” speed is selected and the machine is never driven on or across gradients.
The grip clip (2) must be fitted to the pin (1) once the trailer etc. has been coupled up.
bWARNING
The dumper must not be used as a towing vehicle on the public highway
