Page 5 - 2 TA3H, TA3SH & TA3.5SH
5. Transportation
5.3 Articulation Lock

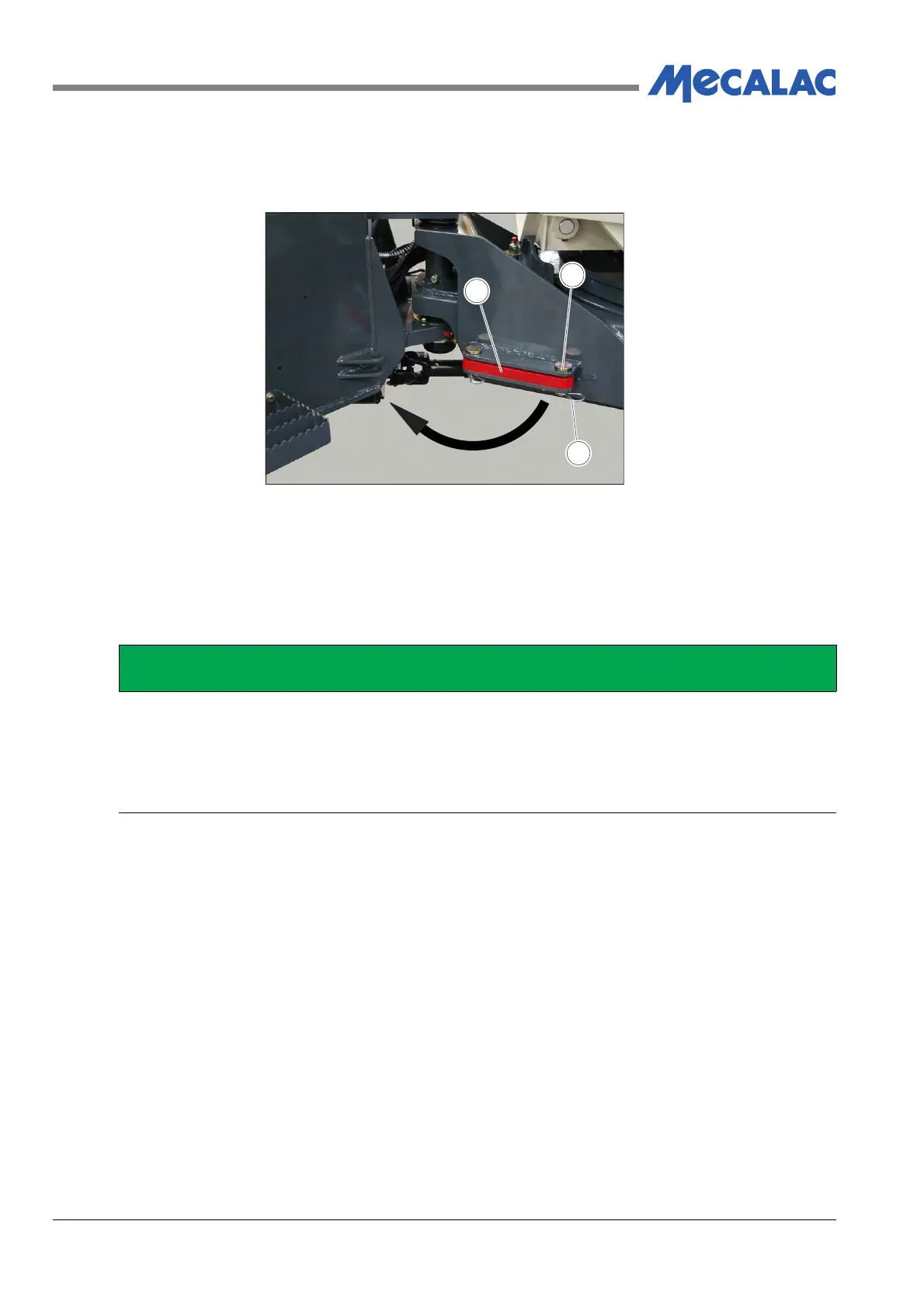

The articulation lock, Figure 5.2 prevents chassis movement when lifting the machine with a
crane or during transport or maintenance.
Figure 5.2 - Articulation Lock
1. Lock Bar
2. Pin
3. R Clip
PROCEDURE
1 To fit the lock bar remove the grip clip and pin from the lock bar.
2 Pivot the lock bar around until the hole in the bar aligns with the hole in the rear chassis.
3 It may be necessary to move the steering wheels slightly to align the holes.
4 Refit the pin and secure with the grip clip.
1
2
3
COV0004
