Page 9 - 16 TA3H, TA3SH & TA3.5SH
9. Maintenance
9.16 Hydraulic Tank Removal
Thoroughly clean the tank and surrounding area before removal. Refer to Figure 9.15.

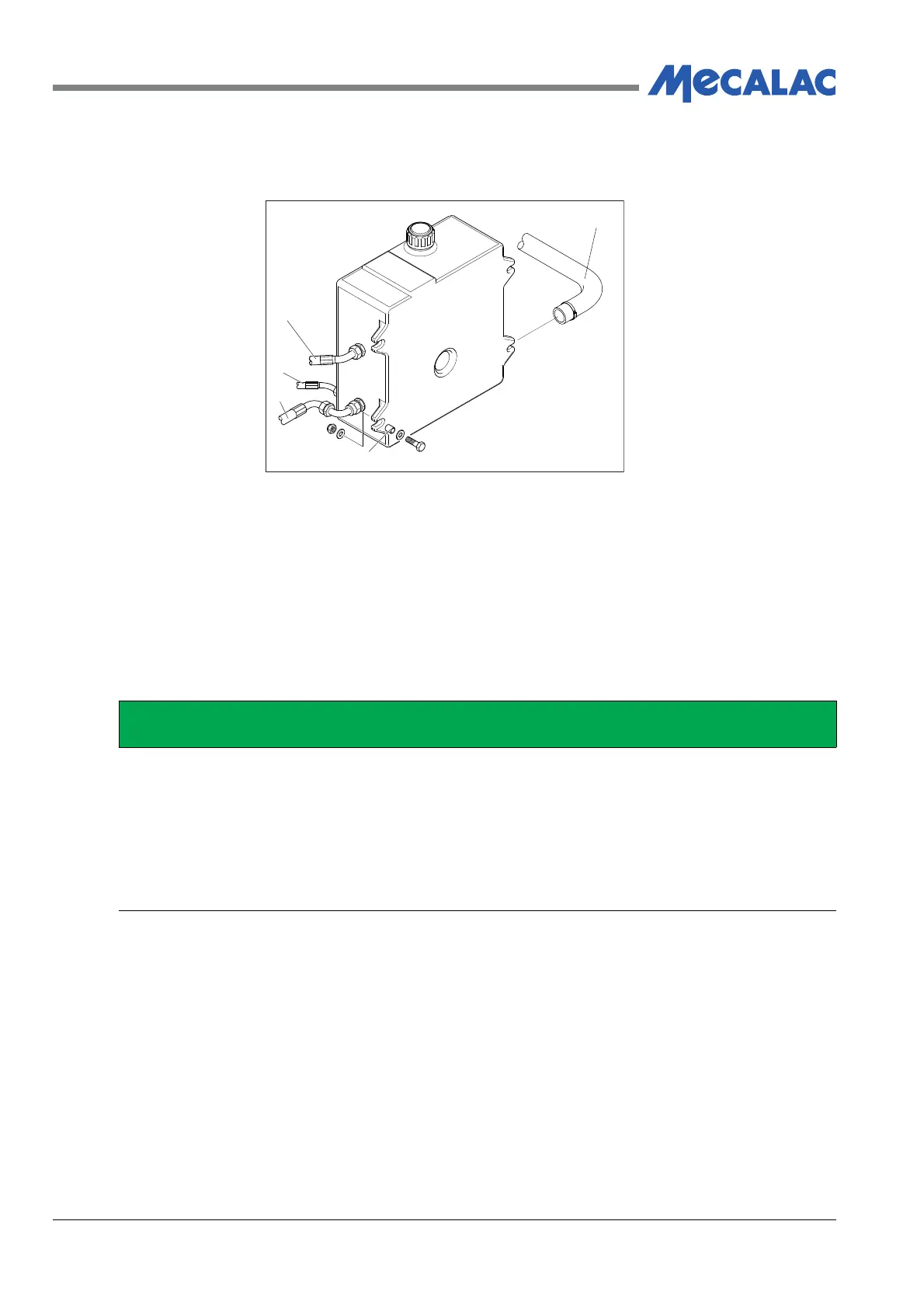

Figure 9.15. - Hydraulic Tank Removal
1. Suction Hose (Pump)
2. Spacers (4off)
3. Return Line from Filter
4. Return Line from Control Valve
5. Return Line from Transmission Pump
With the tank removed the inside should be thoroughly cleaned and flushed out. When refitting
the tank make sure the spacers are in position before tightening the bolts. After refitting the tank
refit and tighten all hoses fill with oil and check for leaks.
9.17 Transmission Pump
Refer to figure 9.16. The transmission pump has an integral filter and is flitted with a filter
blockage indicator. The indicator band is normally GREEN. If the blockage indicator band shows
RED the transmission pump filter must be changed.
Otherwise the filter must be changed at the suggested service intervals shown in the Lubrication
Schedule.
PROCEDURE
1. Drain off the hydraulic oil from the tank.
2. Undo hose clip securing the suction hose and pull the hose (1) from suction filter.
3. Remove the return hoses.
4. Remove the nuts and bolts securing the tank.Take care not to loose the spacers (2).
5. Lift the tank from the machine.
1
2
3
4
5
COV0008
