5. Transportation
5.5 Tie Down Points
Tie down points are provided at the front and rear of the machine. The chains, straps, ropes etc.
must be attached to the machine’s front tie down points (1) forward tip skip, Figure 5.3. or (2)
swing skip, Figure 5.4. and rear tie down points, Figure 5.5 (each side of machine).

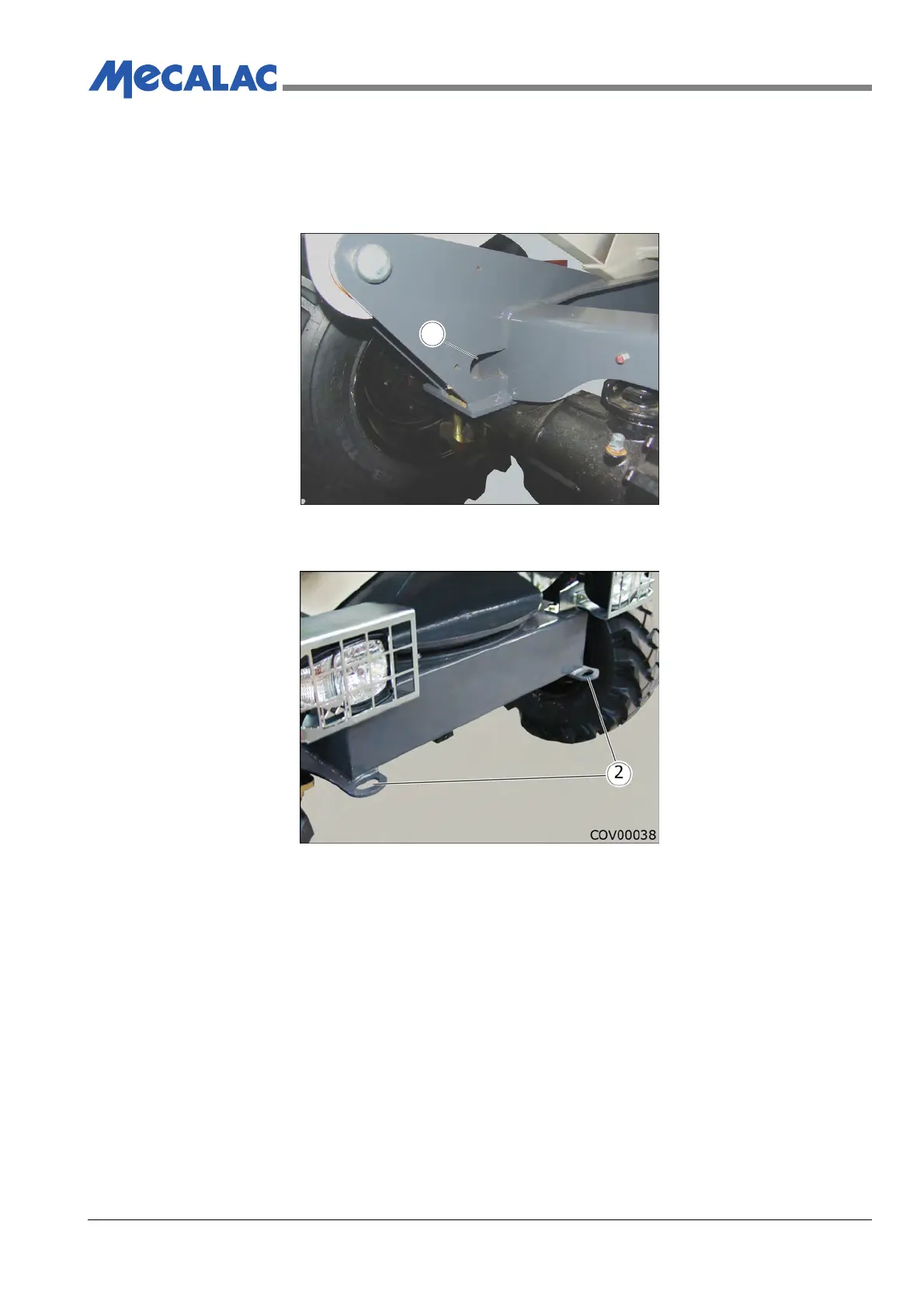

Figure 5.3. - Front Tie Down - Forward Tip Skip
Figure 5.4. - Front Tie Down - Swing Skip
