Page 9 - 28 TA3H, TA3SH & TA3.5SH
9. Maintenance

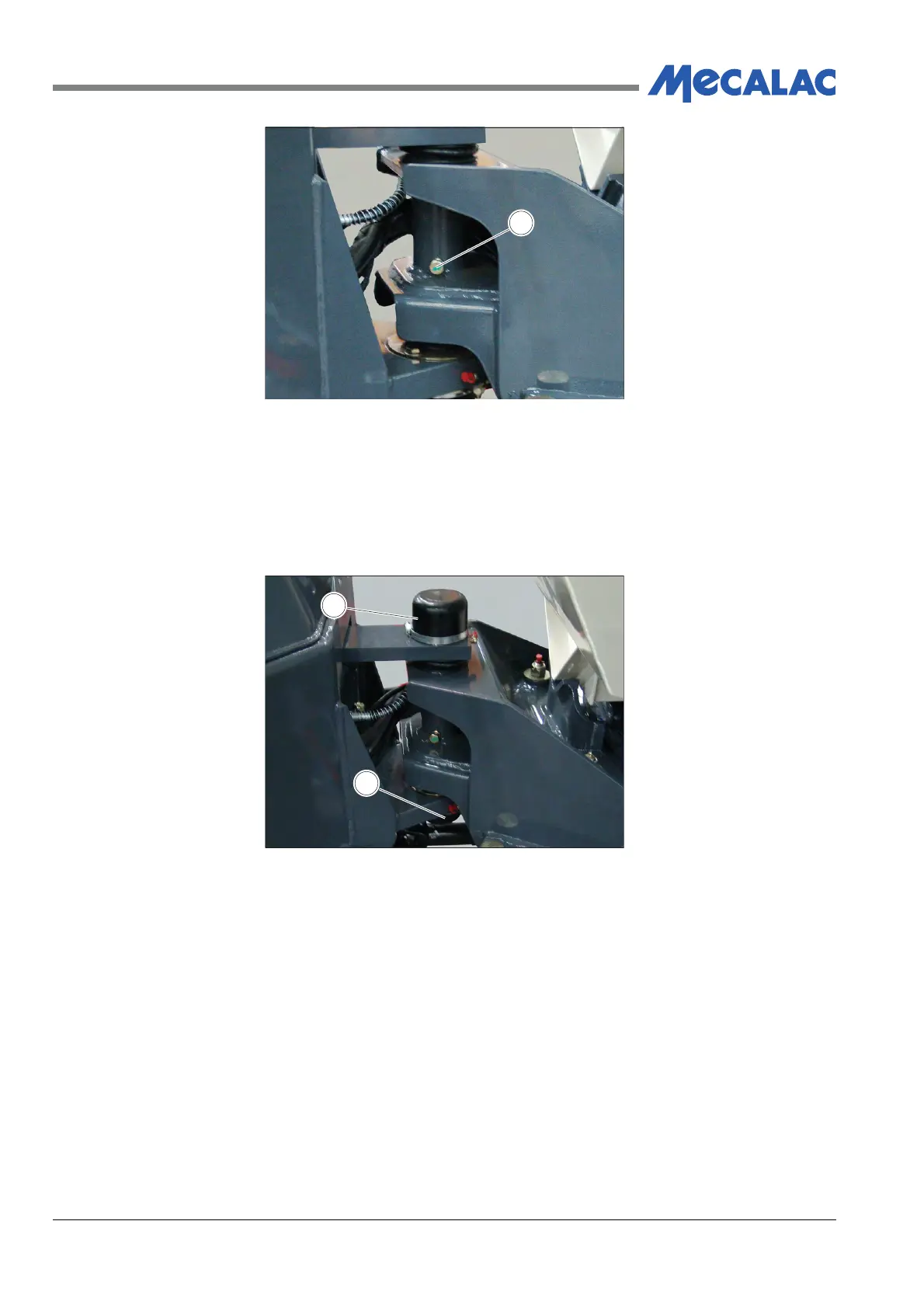

Figure 9.26.- Pivot Lock Screws
(2) Protective Caps
The protective caps fitted over the centre pivot bearings must be checked regularly. If split or
otherwise damaged they must be replaced to prevent the ingress of dirt or moisture into the
bearings.
Figure 9.27. - Protective Caps
1. Protective Cap
(3) Lubrication
Lubrication of the centre pivot is very important and must be carried out every 50 hours. - See
Service Schedule.
