TA3H, TA3SH & TA3.5SH Page 4 - 13
4. Description

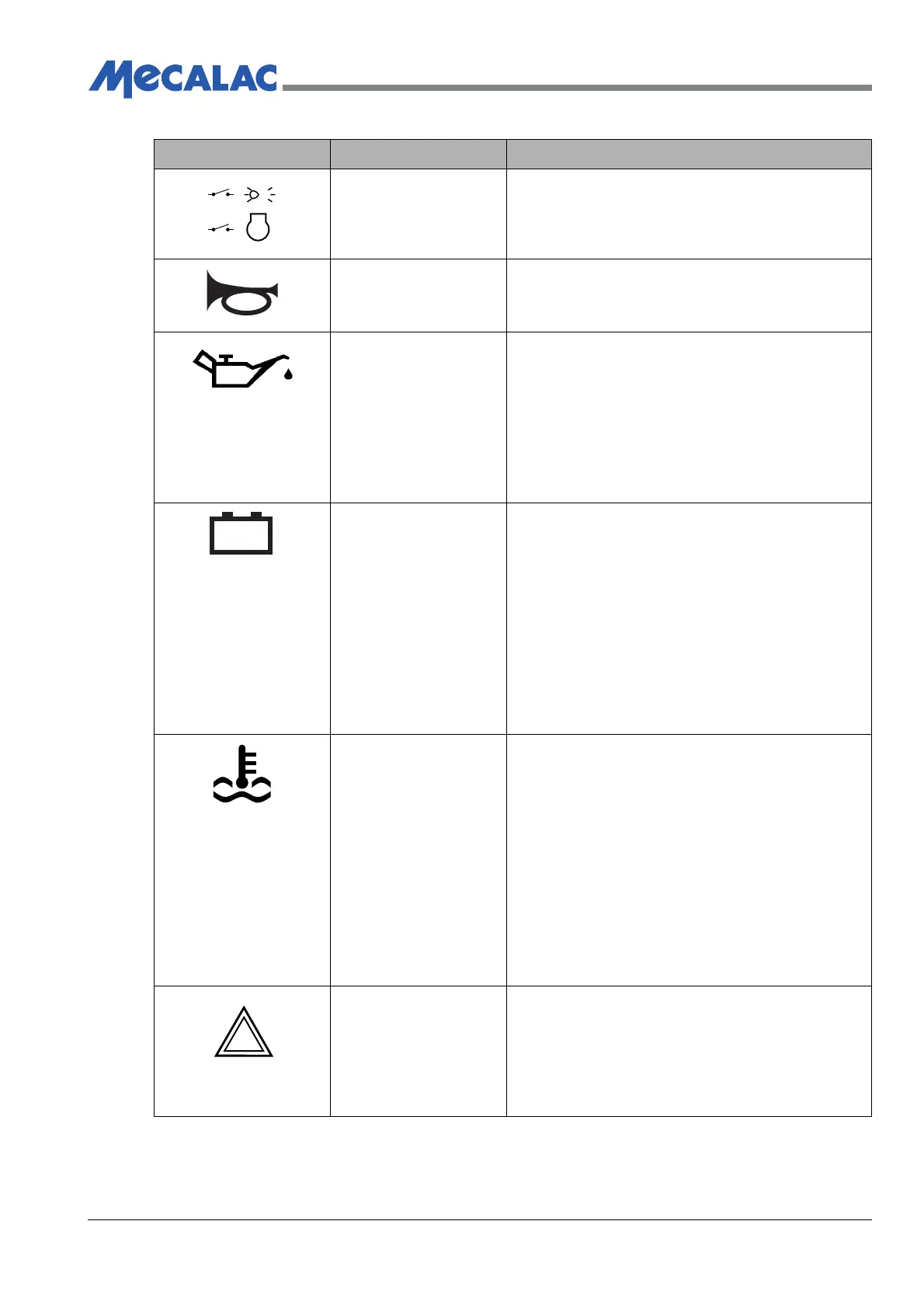

Table 4.1 - Dashboard Symbol Description
Symbol Name Description
Circuit breaker -
Electric Circuit
A - 15A Engine Starter System
B - 30A Lights (if fitted)
Circuit breakers protect the machines electrical
system.
Horn Button The horn is used to warn others and must only
be used for this purpose. Excessive use may
cause others to ignore a genuine warning.
Warning Light -
Engine Oil Pressure
This warning light will come on when the start
switch is turned to the RUN position.
When the engine starts, the light should go off.
If the light fails to go off or come on when the
engine is running -
STOP THE ENGINE IMMEDIATELY
Do not use the machine until the fault has been
rectified.
Warning Light -
Battery Charge
The battery charge warning light should only
come on when the start switch is ON and the
engine is not running. When the engine starts
and full RPM is selected the charge warning
light goes off. The warning light should stay off
while the engine is running.
If the light fails to go off when the engine is
running -
STOP THE ENGINE IMMEDIATELY
Do not use the machine until the fault has been
rectified.
Warning Light -
Engine Coolant
Temperature
The water temperature warning light should
only come on when the start switch is in the
RUN position and should go out when the
engine is cranked.
If the warning light comes on when the engine
is running the water temperature is too high, a
warning buzzer will also sound.
If engine temperature warning light comes on
when engine is running -
STOP THE ENGINE IMMEDIATELY
Do not use the machine until the fault has been
rectified
Warning Light -
Direction Indicator
When fitted, this light will flash when the
indicator switch is moved into the left or right
turn position.
If the light fails to perform this function, do not
use the machine until the cause has been
rectified.
15A
30A
-
+
