Page 3 - 2 TA3H, TA3SH & TA3.5SH
3. Technical Data
(b) TA3SH & TA3.5SH

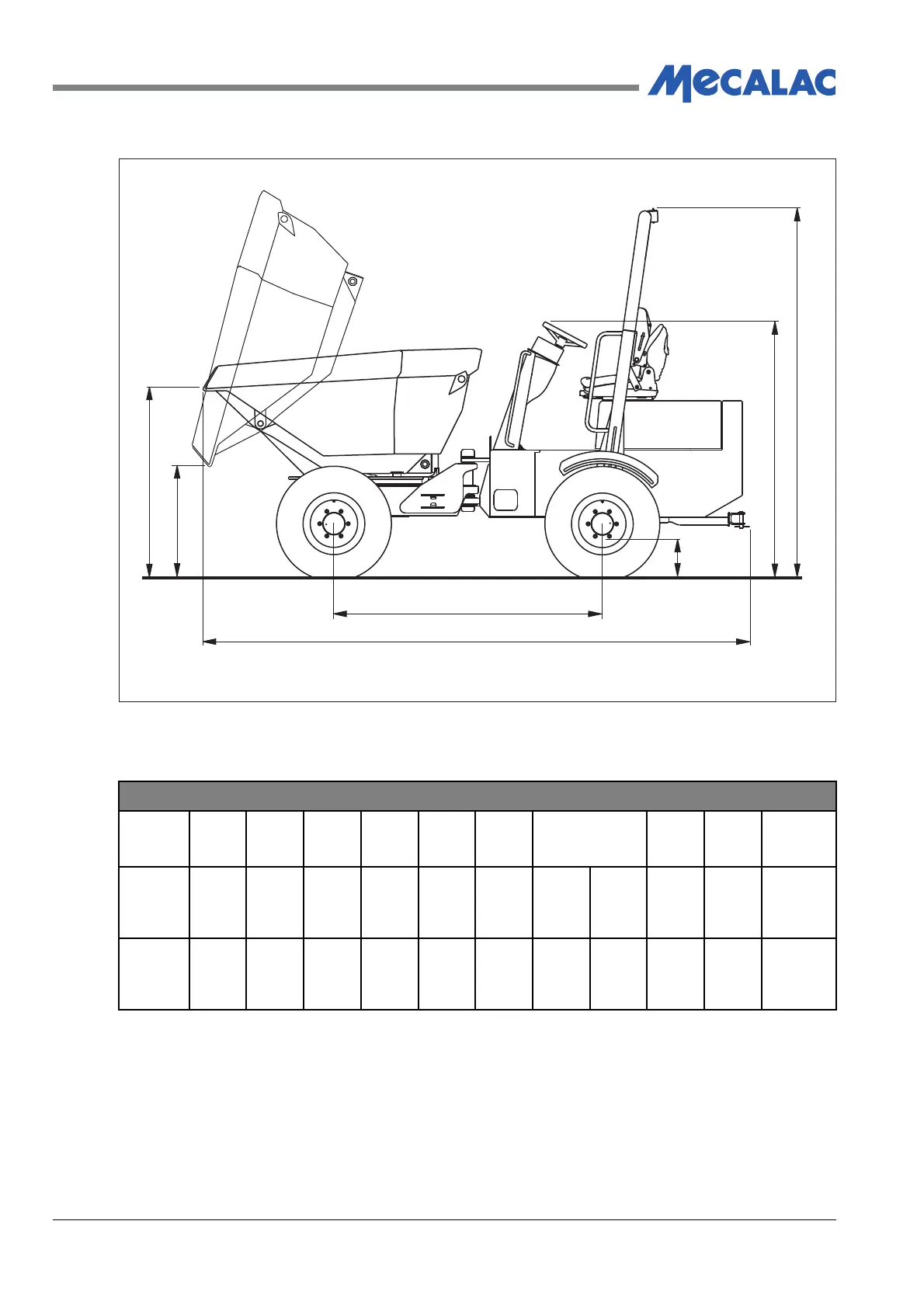

Figure 3.2 - Dimensions
Table 3.2 - Dimensions
* With Operator (75kg)
** Without Operator
Dimensions mm (in)
Model ABCDEF G
ROPS
Beacon
H
Across
Skip
I
Across
Tyres
Mass
TA3SH 1467
(57.7)
792
(31.2)
1939
(76.3)
3952
(155.5)
213
(8.3)
1892
(74.4)
2689
(105.8)
2919
(114.9)
1690
(66.5)
1846
(72.6)
2455 Kg*
(5412lb)
2340 Kg**
(5159lb)
TA3.5SH 1467
(57.7)
792
(31.2)
1939
(76.3)
3952
(155.5)
213
(8.3)
1892
(74.4)
2689
(105.8)
2919
(114.9)
1690
(66.5)
1846
(72.6)
2455 Kg*
(5412lb)
2340 Kg**
(5159lb)
COV00006
A
B
C
D
E
F
G
