TA3H, TA3SH & TA3.5SH Page 9 - 7
9. Maintenance
(2) Servicing
Refer to Figure 9.6 illustrating the major air cleaner components.
.

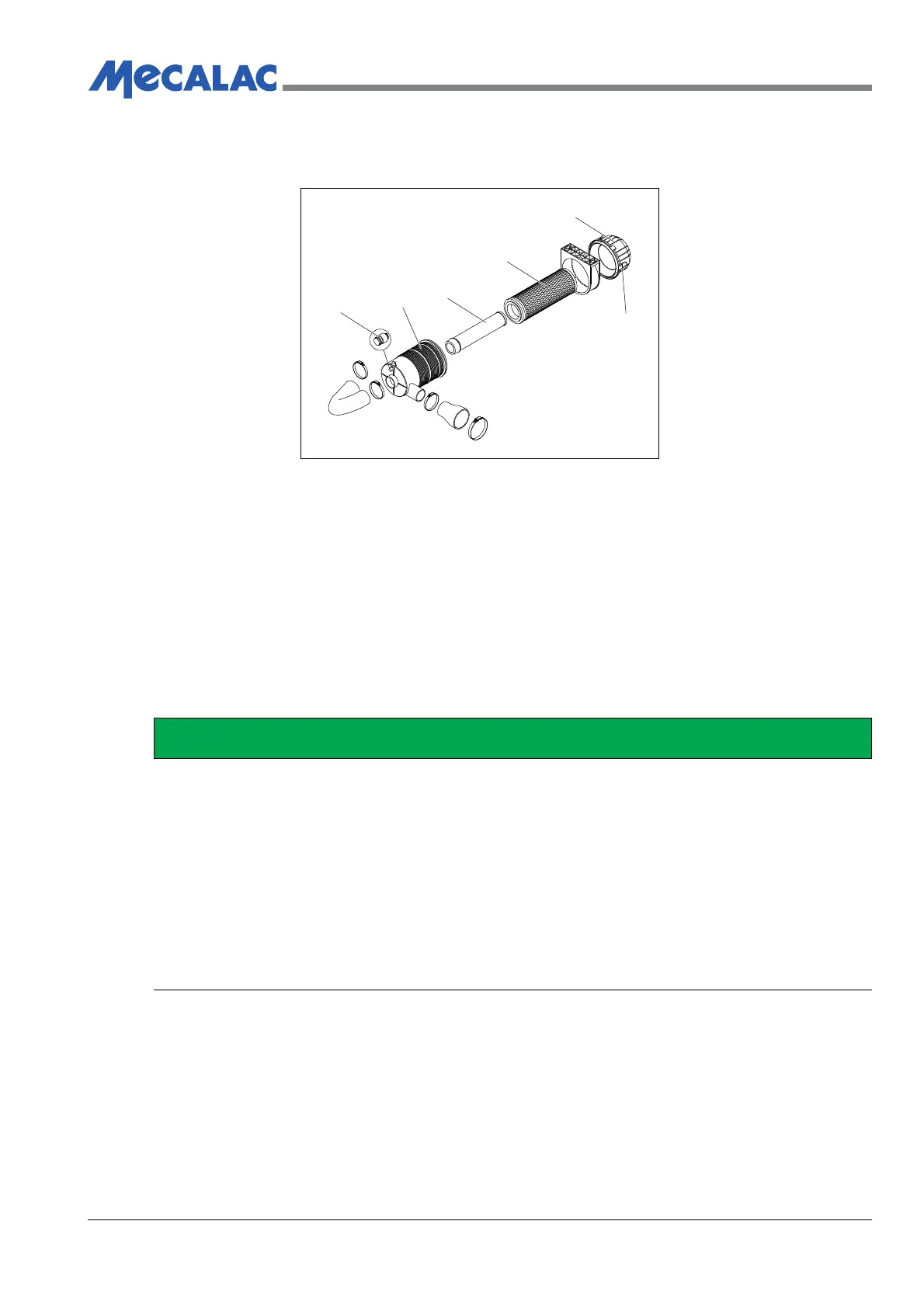

Figure 9.6 - Air Cleaner
1. Sediment Cup.
2. Clamp
3. Blockage Indicator
4. Body
5. Secondary Element
6. Main Element
(3) Cleaning the Main Element
The main element should cleaned by tapping gently on a hard surface or by blowing gently from
the inside with compressed air line. Figure 9.7 refers.
PROCEDURE
1. Clean the area around the air cleaner.
2. Loosen clamps holding the sediment cup to the air cleaner body and pull cup clear.
3. Remove the elements from the body.
4. Clean the main element by tapping gently on a firm object or by blowing gently with
compressed air from inside the element.
5. If the main element is damaged or severely contaminated it must be replaced.
6. DO NOT attempt to clean the secondary element; if contaminated it must be replaced.
7. Thoroughly clean the main body and sediment cup.
8. Re assemble the cleaner.
COV00019
1
2
3
4
5
6
