Global Controls

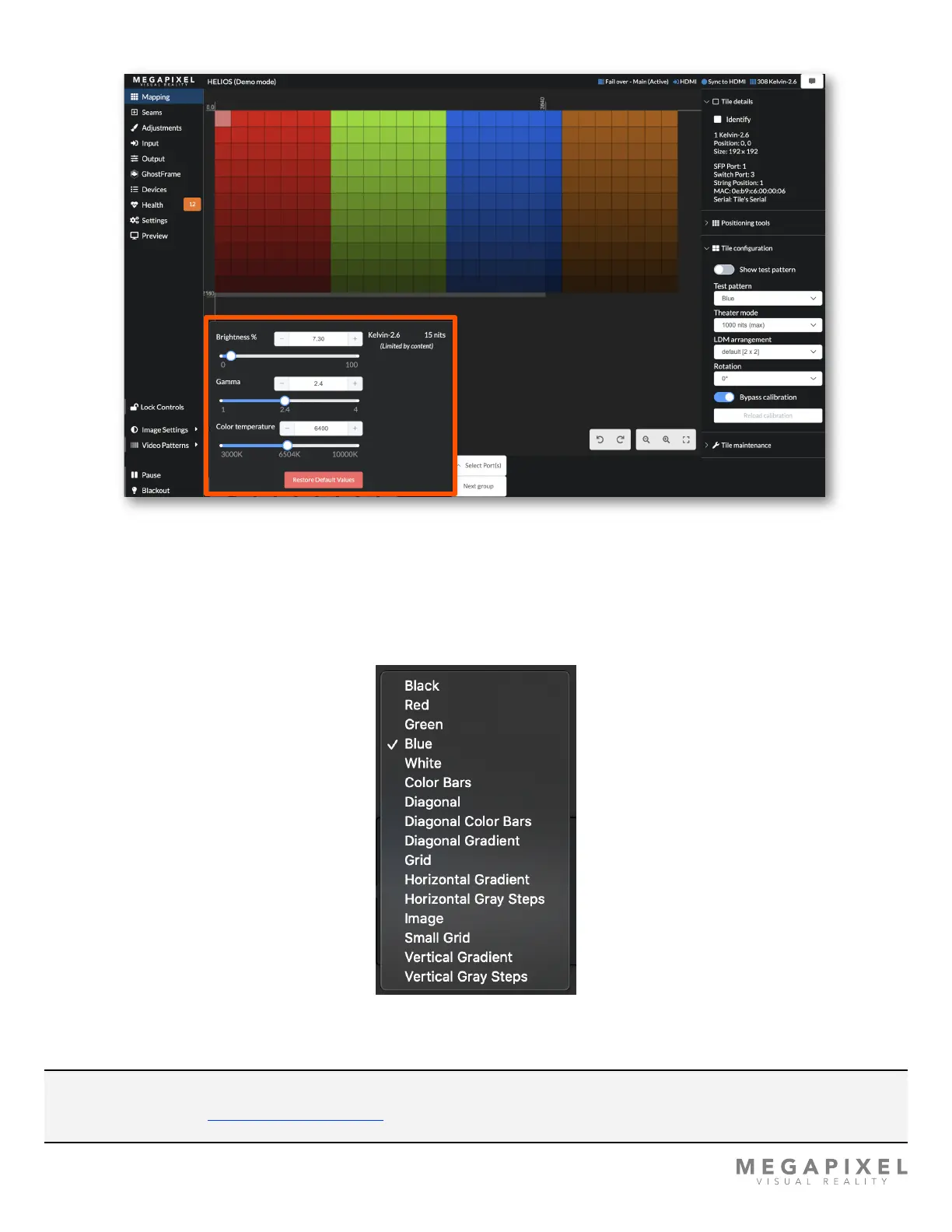

Figure 20: Global controls.
1. Lock Controls - Enable this to prevent accidentally triggering any of the controls below it.
2. Image settings - contains the Brightness, Gamma, and Color temperature controls.
3. Video Patterns - a variety of onboard HELIOS test patterns that over-ride the video inputs.
Figure 21: Test Patterns.
NOTE: By default, systems with multiple display device types limit the maximum luminance. This behavior can be
overridden, see the Limit to lowest tile max section for more details.
