HELIOS LED Processing Platform - USER GUIDE 29
Sync
HELIOS can sync frames to either the frame rate of the inbound signal or to an external genlock. When an external
genlock signal is required (as is the case with redundant systems), use the Allow external sync toggle to enable it.

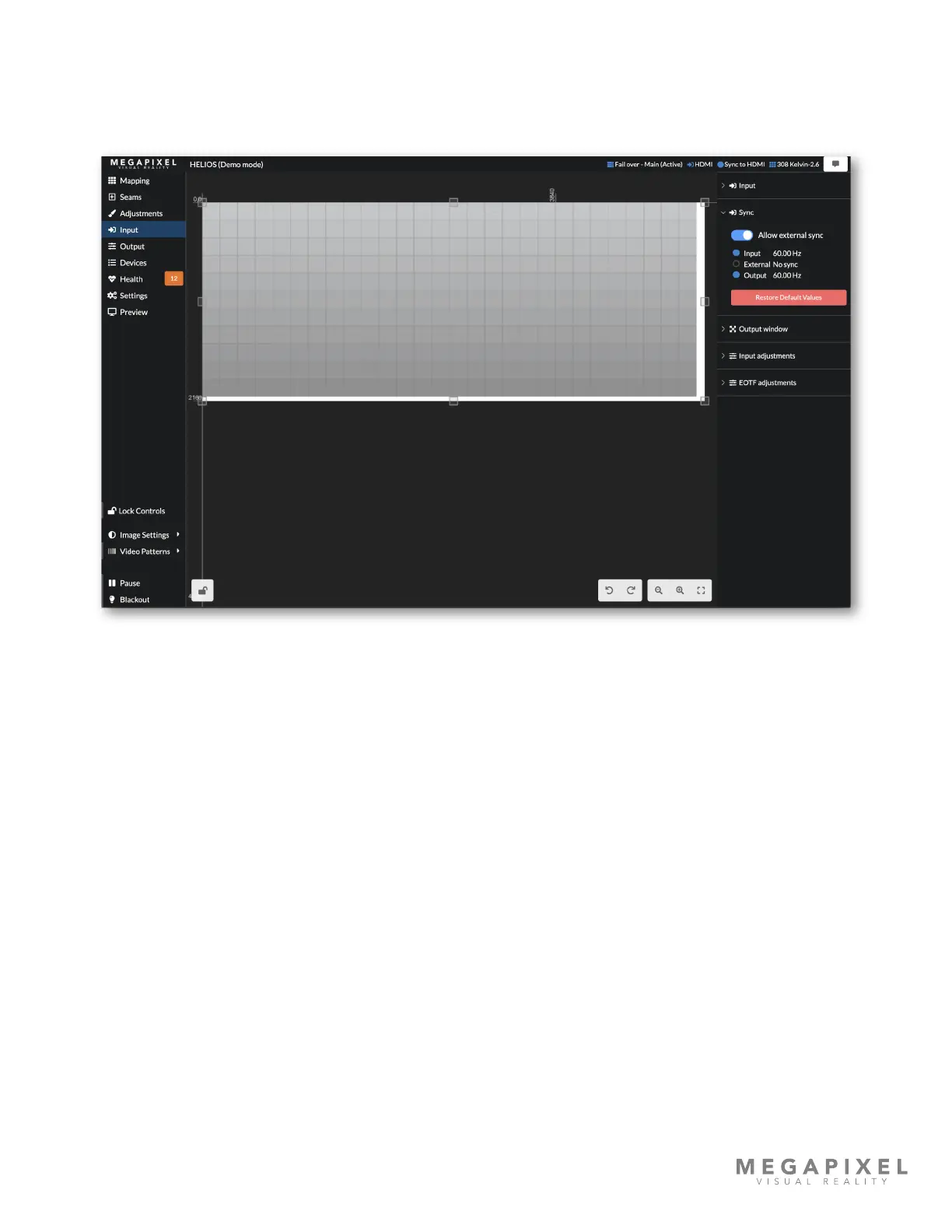

Figure 33: Sync settings
