3.8.10 Manual Test Menu Screen
This menu permits the setting and testing of relays in a manual mode. These tests should be
conducted in accordance with the manufacturers relay specifications.

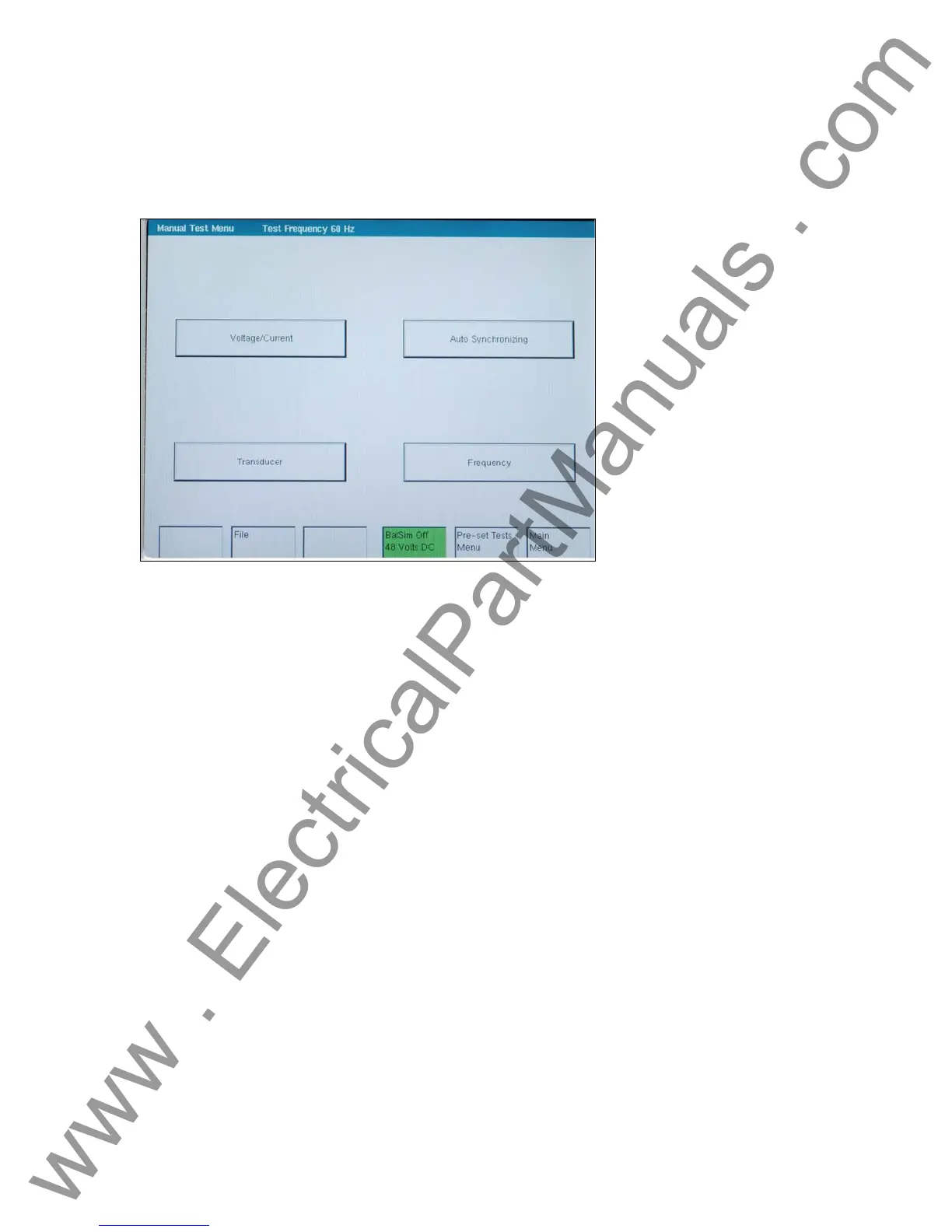

Figure 94 Manual Test Menu Screen
There are several options to further define the tests to be performed. Selecting one of these
options will present the test setup screen for that option.
The bottom of the screen has common buttons.
• The File button stores the present test values or reloads the previous set of values.
• The Main Menu button returns the user to the main screen menu. If the Main Menu button is
selected the test will be stopped and will return the generators to an inactive state.
• Remove Pre-Set Menu Selection
-
