3.8.7 Power Relay Test Menu
This menu permits the setting and testing of a power relay. These tests should be conducted in
accordance with the manufacturers relay specifications.

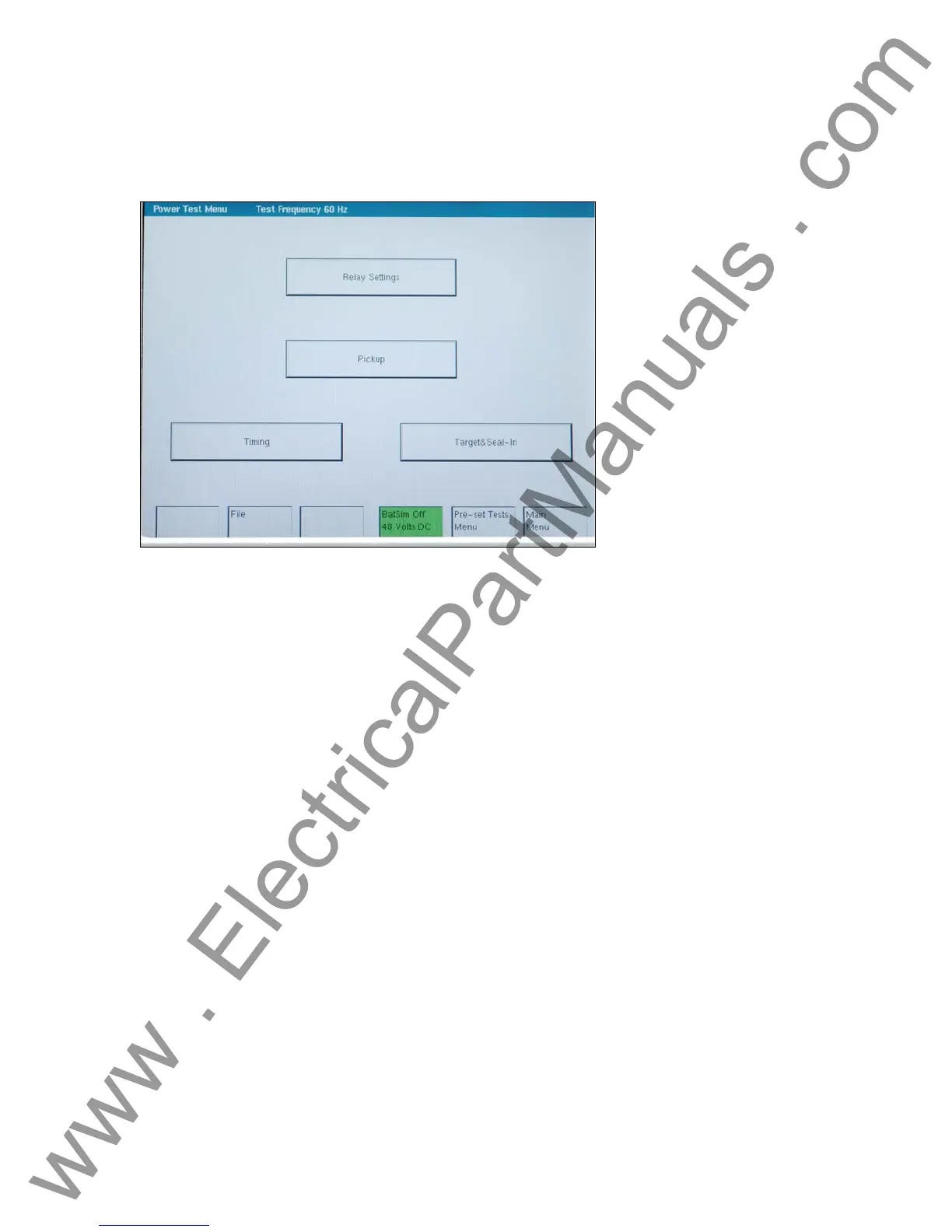

Figure 68 Power Relay Test Menu
This menu permits the setting and testing of a Power relay. These tests should be conducted in
accordance with the manufacturers relay specifications.
The bottom of the screen has common buttons.
File: This selection will take the user to the File
Manager.
Pre-set Test Menu: This selection will return the controller to the
Pre-set Test Menu Screen.
Main Menu: This selection will return the controller to the
Main Menu:
-
