3.8.5.3 Voltage Relay Timing Test Results
This screen displays the results upon test completion. No data may be entered in this screen.

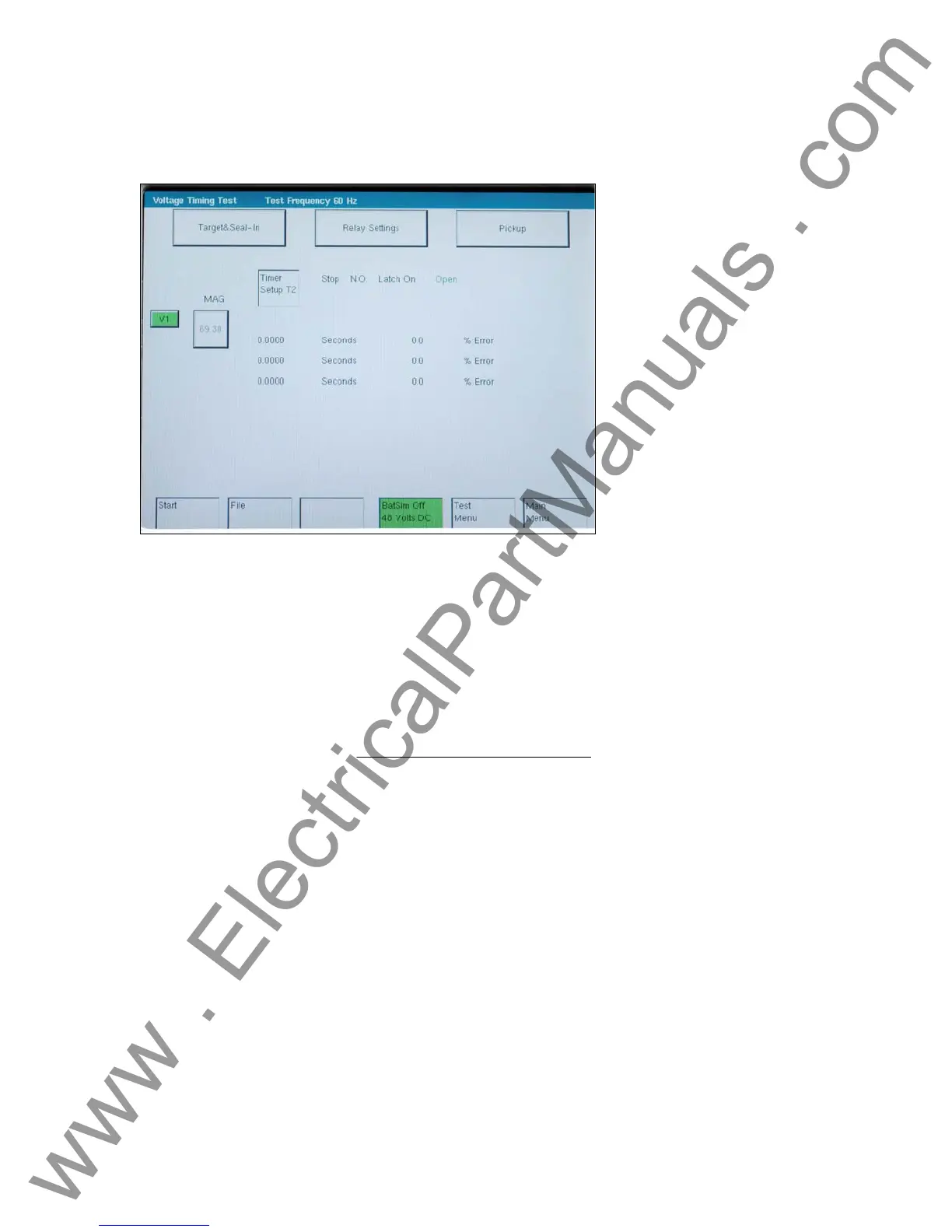

Figure 63 Voltage Relay Timing Test Screen
• The Timing Settings button will change screens and will allow changes to meet the
manufacturer specifications.
• The Pickup Settings button will change screens and will allow changes to meet the
manufacturer’s specifications.
• A timing error calculation must be performed based on the actual trip time versus the
theoretical time from the time curve algorithms or from the definite time window:
100*
Time lTheoretica
Time lTheoretica - Time Actual
error %
⎟
⎠
⎞
⎜
⎝
⎛
=
The bottom of the screen has common buttons.
File: This selection will take the user to the File
Manager.
Batt Sim Off / Batt Sim On: This selection will turn the Battery Simulator On
and Off.
Test Menu: This selection will return the controller to the
Test Menu Screen.
Main Menu: This selection will return the controller to the
Main Menu:
-
87
