Test Menu: This selection will return the controller to the
Test Menu Screen.
Main Menu: This selection will return the controller to the
Main Menu:
Start / Stop: This selection will apply the set quantities
displayed and begin the test. After Start is
pressed this button will turn red and display
Stop. Pressing Stop at any time will stop the
test and turn the outputs off.
3.8.2.8 Impedance Relay Angle of Torque Test Results Screen
This screen displays the results upon test completion. The Zone and Fault values are copied
from the setting screen while all other values are calculated from the test results. The results of
the test will be displayed as “Test Passed” or “Test Failed”. No data may be entered in this
screen.

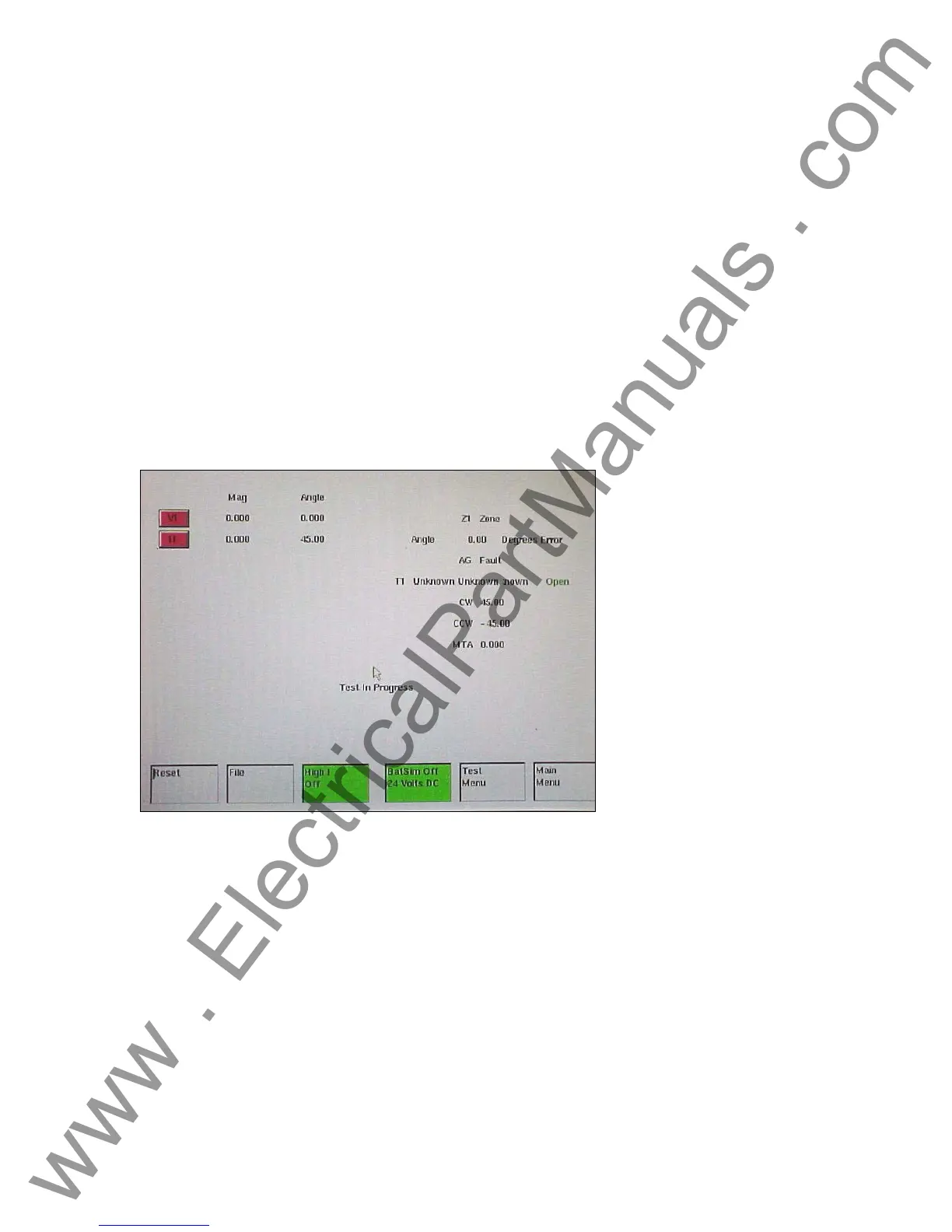

Figure 38 Angle of Torque Test Screen
The bottom of the screen has common buttons.
File: This selection will take the user to the File
Manager.
Batt Sim Off / Batt Sim On: This selection will turn the Battery Simulator On
and Off.
Test Menu: This selection will return the controller to the
Test Menu Screen.
Main Menu: This selection will return the controller to the
Main Menu:
59
