Megger MPRT 8430 - Impedance Relay Testing

3.8.2 Impedance Relay Testing Menu
The unit contains a set of default values so a test operator interested in running a quick test will
not have to enter this data.

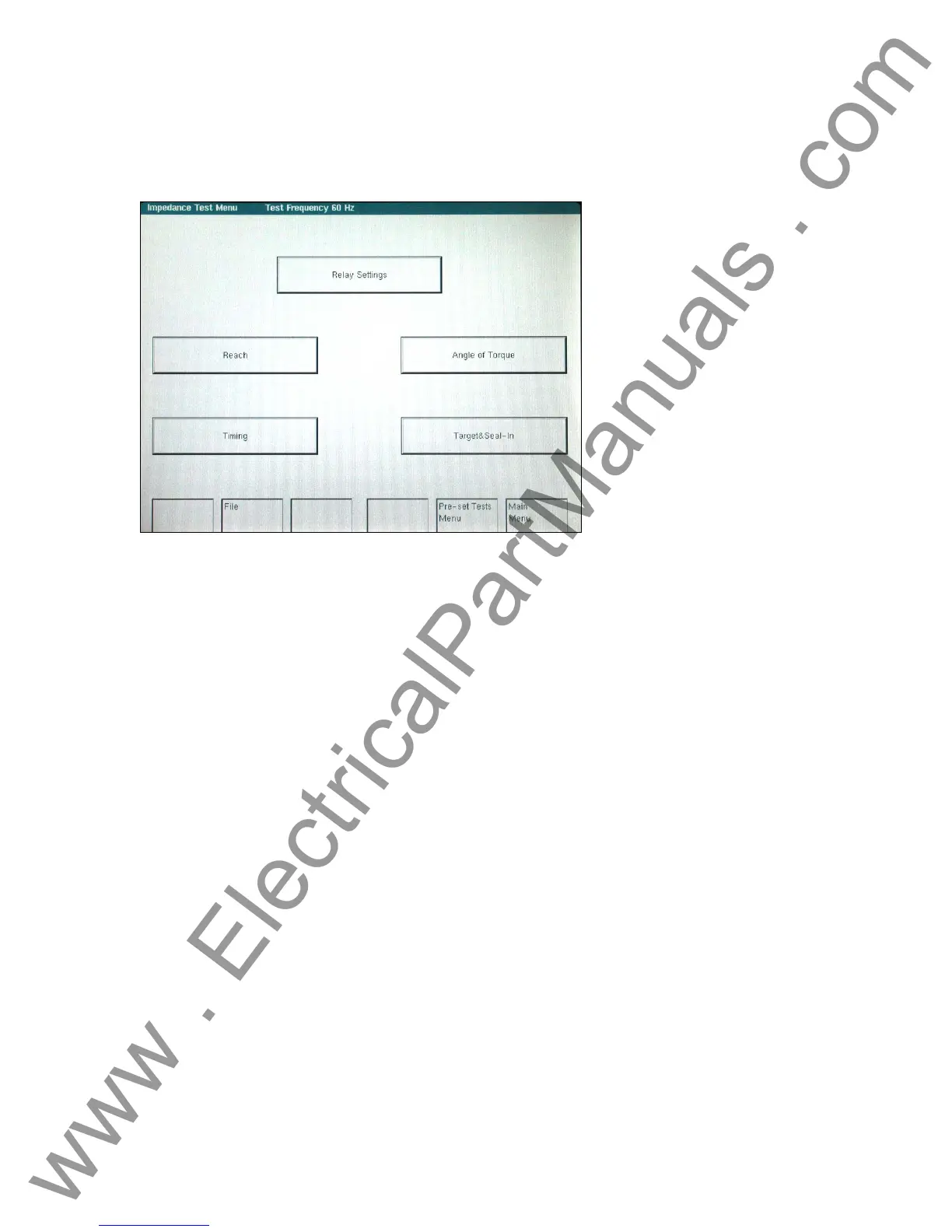

Figure 30 Impedance Relay Menu Screen
This menu permits the setting and testing of an Impedance or Distance relay. These tests should
be conducted in accordance with the manufacturers relay specifications.
The bottom of the screen has common buttons.
File: This selection will take the user to the File
Manager.
Pre-set Tests Menu: This selection will return the controller to the
Pre-set Test Menu Screen.
Main Menu: This selection will return the controller to the
Main Menu:
