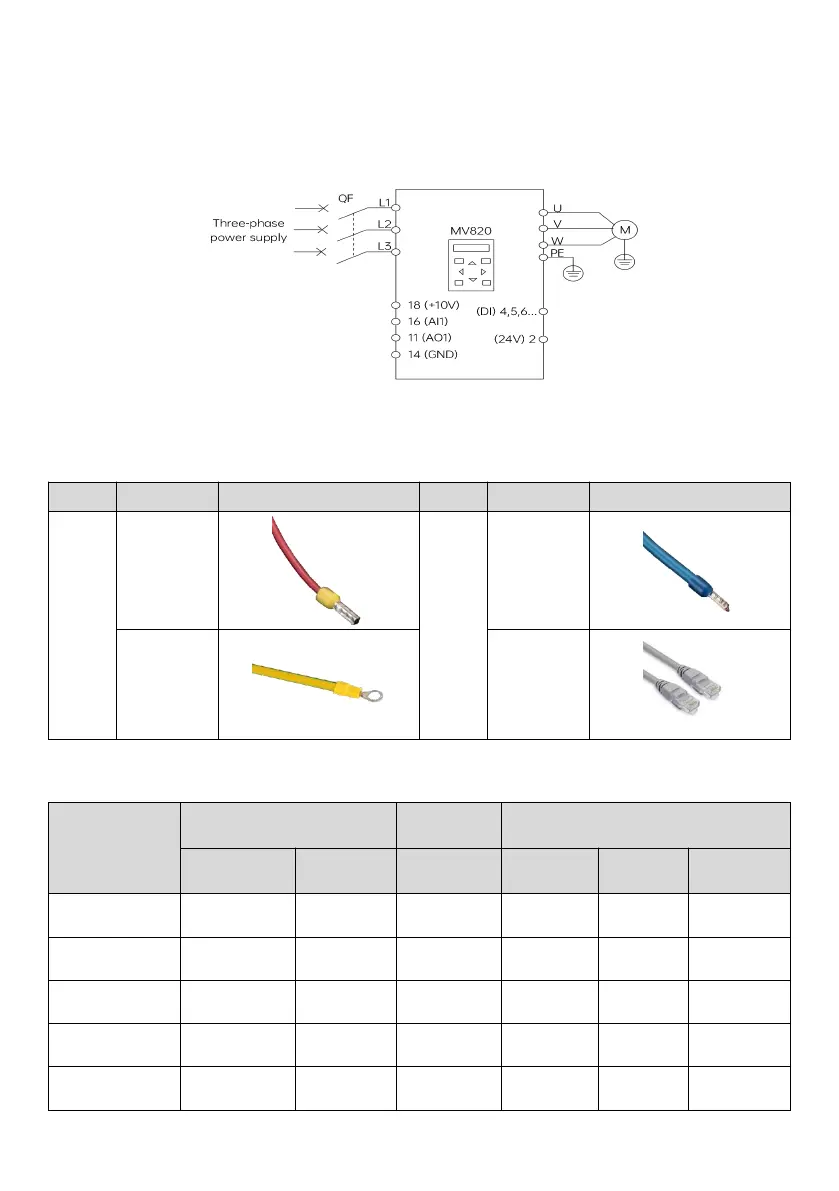

You can use the following diagram in Fig. 4-1 during trial operation.
Fig. 4-1 Simple wiring of the main circuit (for three-phase models)
Recommended cables of the drive using Euroblock are shown in the following table:
Table 4-1 Recommended cables
Type
Cable
Drawing
Type
Cable
Drawing
Main
circuit
cable
Power cable
(pipe-type
terminal
connector)
Control
circuit
cable
Signal cable
(pipe-type
terminal
connector)
Grounding
cable (OT
terminal
connector)
Ethernet cable
Recommended pipe-type terminal diameters of the drive using Euroblock are shown in the following table:
Table 4-2 Recommended pipe-type terminal diameter
MV820 models
Main circuit (mm
2
)
Control circuit
(mm
2
)
Recommended pipe-type terminal diameter
ф (mm)
Input cable
Output cable
Control
terminal cable
Input cable
Output
cable
Control
terminal cable
MV820G1-2S0.4B
1.0
1.0
0.5
1.7
1.8
1.3
MV820G1-2S0.75B
1.5
1.5
0.5
2.0
2.0
1.3
MV820G1-2S1.5B
2.5
2.5
0.5
2.6
2.6
1.3
MV820G1-2S2.2B
4
4
0.5
3.2
3.2
1.3
MV820G1-2D0.4B
1.0/0.75
1.0
0.5
1.7/1.5
1.7
1.3
