6 First steps
26

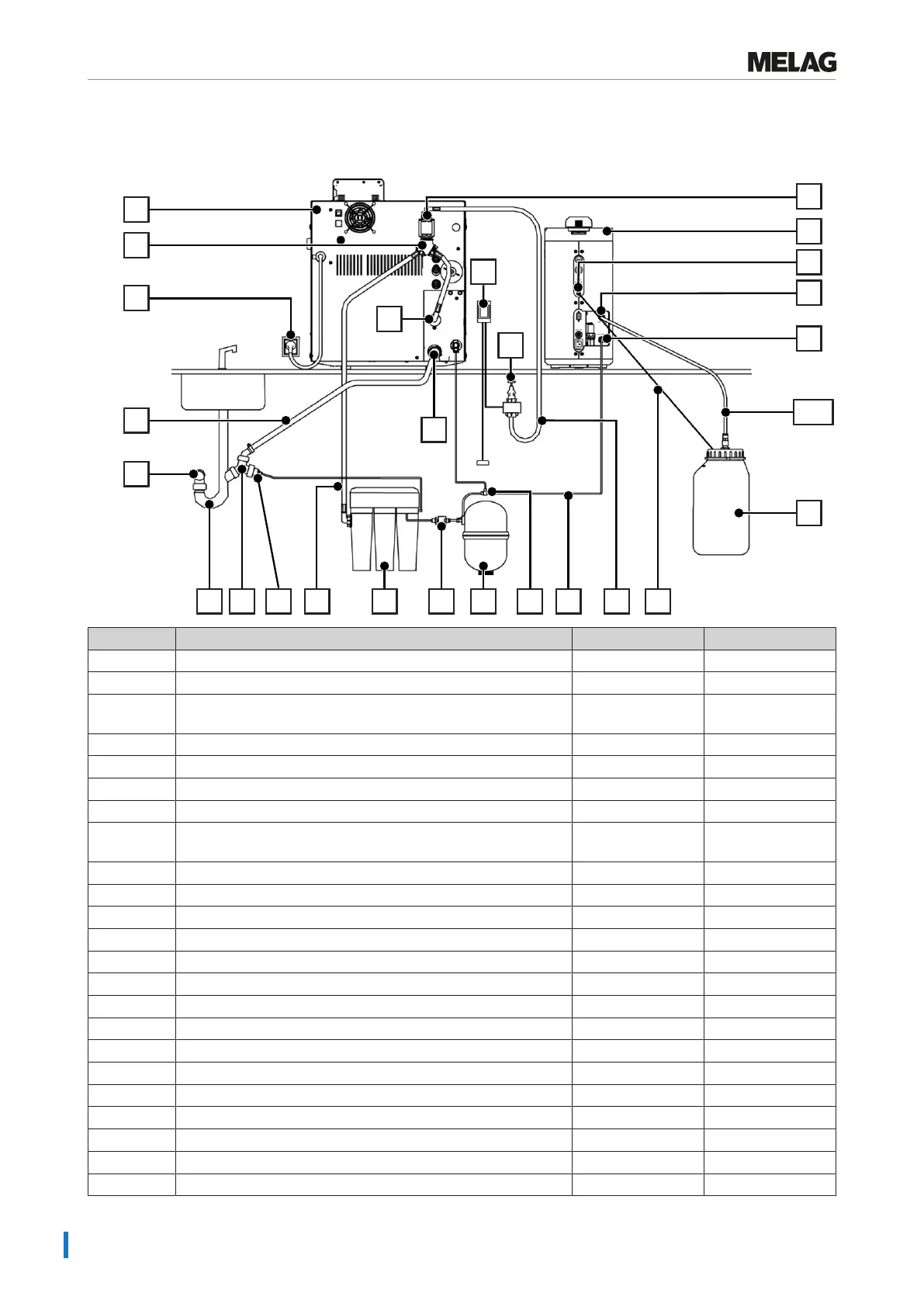

MELAdem 47
The feed water is fed from the MELAdem47 reverse osmosis unit. The water is discharged into the wastewater contain-
er.
1
2
2.4
2.3
3.33.4
9
2.4.1
2.1
2.2
3.13.2 8.333.74
5
3.6 3.5
6
7
8
3.8
8.2
10
8.1
2.5
Position Description Art. no. contained in
1 Safety combination EN 1717 incl. holder ME82375 --
2 MELAquick 12+/12+ p -- --
2.1 Connection for water level monitoring in the wastewater
container
-- MELAquick
2.2 Connection to wastewater container -- MELAquick
2.3 Connection of feed water -- MELAquick
2.4 Wastewater container, complete ME74215 MELAquick
2.4.1 Hose PTFE (8/6 mm, wastewater hose) ME39180 MELAquick
2.5
Connecting cable for water container (for water level
monitoring)
ME21353 MELAquick
3 MELAdem 47 reverse osmosis unit ME01047 --
3.1 Hose PUR (black) 6/4 mm (inlet hose feed water) ME28820 MELAdem 47
3.2 T-piece for hoses ME38600 MELAdem 47
3.3 Pressure tank MELAdem 47 (with shut-off valve and hose) ME57065 MELAdem 47
3.4 Filter for MELAdem ME48240 MELAdem 47
3.5
Water inflow hose
ME37220 MELAdem 47
3.6 Wastewater adapter (G1/4” internal thread) ME56930 MELAdem 47
3.7 Double support sleeve for an existing trap ME37400 MELAdem 47
3.8 Y-fitting for water supply with seal ME37315 MELAdem 47
4 Double-chamber siphon (on site) ME26635 --
5 Wall outlet DN 40 (on site) -- --
6
Hose for water drain of steam sterilizers
ME36585 --
7 Mains connection (on site) -- --
8 Vacuklav40B+ Evolution/Vacuklav44B+ Evolution ME10080/ME10084 --
8.1 Cooling water inlet fitting -- Vacuklav
