FUEL PUMP
90-828631R3 MARCH 1999 Page 3A-5
Fuel Pump Removal
1. Remove sta-straps from fuel lines.
IMPORTANT: The hose fittings on the fuel pump can break if you try twisting or pull-
ing the hoses off. Remove hoses by slowly prying off the hoses using a small screw-
driver.
2. Disconnect fuel lines from pump.
3. Separate fuel pump from cylinder head cover by removing mounting bolts.
53668
out
out
in
a
c
d
b

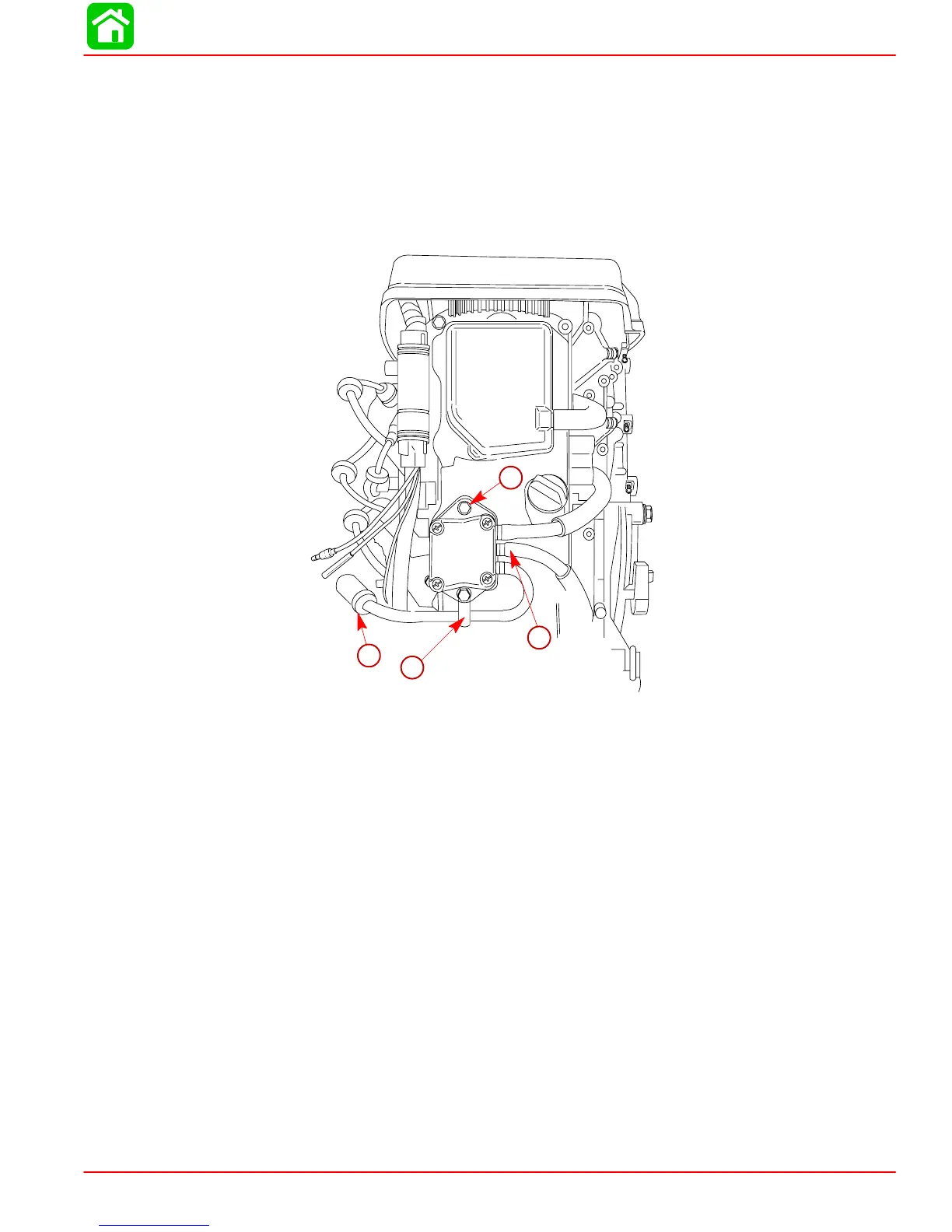

a-Mounting Bolts-10mm (2)
b-Fuel Lines (3)
c-J-Clamp
d-Fuel Filter
