BIGFOOT GEAR HOUSING
90-828631R3 MARCH 1999 Page 6B-53
Water Pump Reassembly and Installation

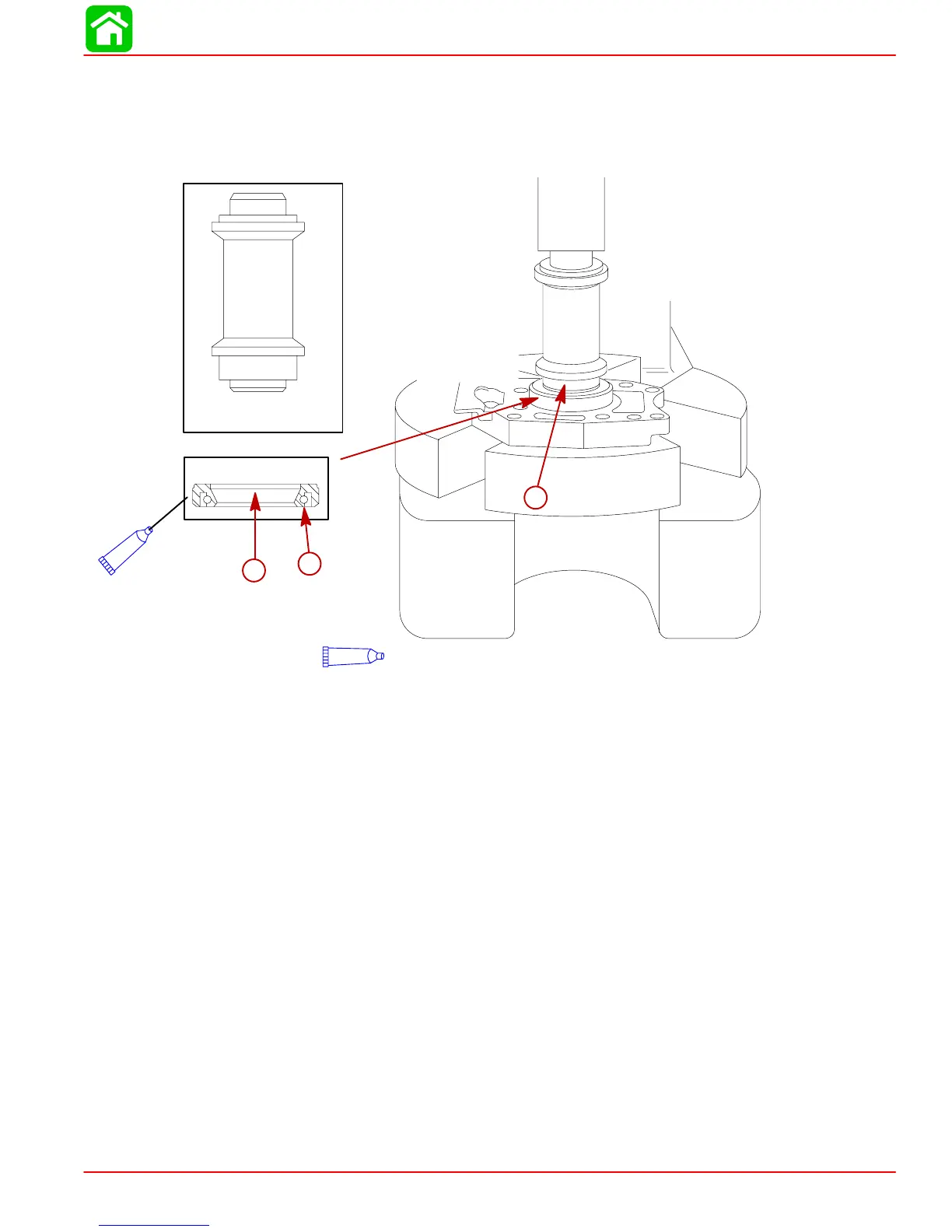

1. Place upper seal on longer shoulder side of Oil Seal Driver (91-13949) with seal lip away
from shoulder.
2. Apply Loctite 271 on O.D. of seal; press seal into water pump base until tool bottoms.
51553
c
91-13949
7
Loctite “271” (92-809819)
7
b
a
a-Seal - Lip Faces Toward Power Head
b-Spring - Faces Toward Power Head
c-Oil Seal Driver (91-13949)
