Trigger Coil Removal and Installation
1. Remove and install the trigger coil as shown.
2. Fasten wiring together with sta-strap.
3. Set the air gap at .030 in. (0.77 mm) between the trigger and flywheel.
4. Refer to Section 2 Part D for wiring diagrams.
.030 in.
(0.77 mm)
55625
d
b
a
c

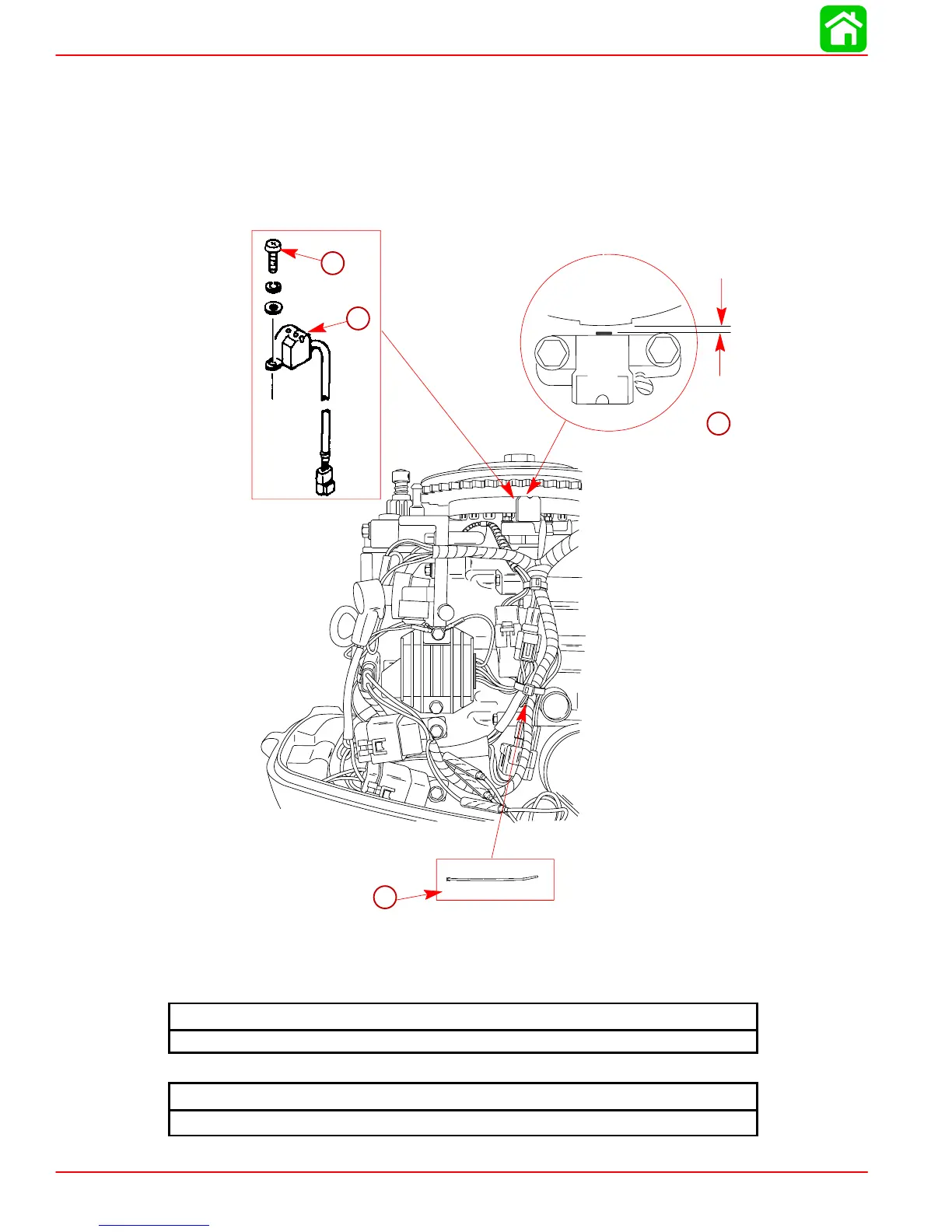

a-Trigger Coil
b-Screw (2)
c-Sta-Strap
d-Air Gap .030 in. (0.77 mm)
Air Gap Between Trigger and Flywheel
.030 in. (0.77 mm)
Screw Torque
45 lb-in. (5.1 Nm)

Mercury 40 Specifications

General

Horsepower	40 hp
Starting System	Electric
Steering	Remote
Fuel Induction System	EFI (Electronic Fuel Injection)
Shaft Length	20"
Full Throttle RPM Range	6000
