TILLER HANDLE
Page 7B-6 90-828631R3 MARCH 1999

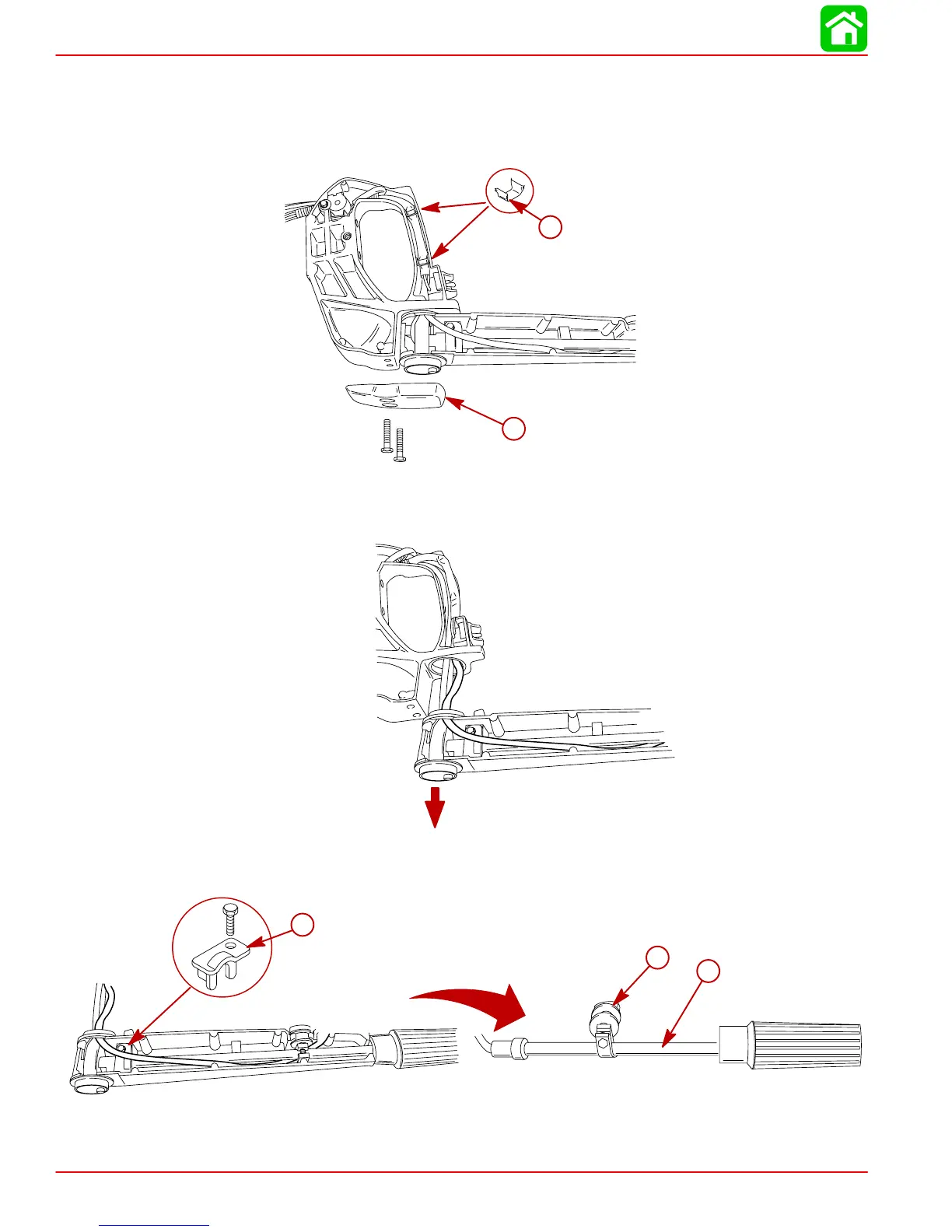

Tiller Handle Disassembly
1. Pry the two clips out of the hand grip.
2. Remove the side cover.
a
b
a-Clips (2)
b-Side Cover
3. Pull the arm along with the throttle cables and wiring from the bracket.
4. Remove retainer and slide out the tiller tube assembly.
5. Remove the throttle lock assembly.
a
b
c
a-Retainer
b-Throttle Lock Assembly
c-Tiller Tube Assembly
