Mercury 40

MANUAL TILT ASSIST
90-828631R3 MARCH 1999 Page 5D-33

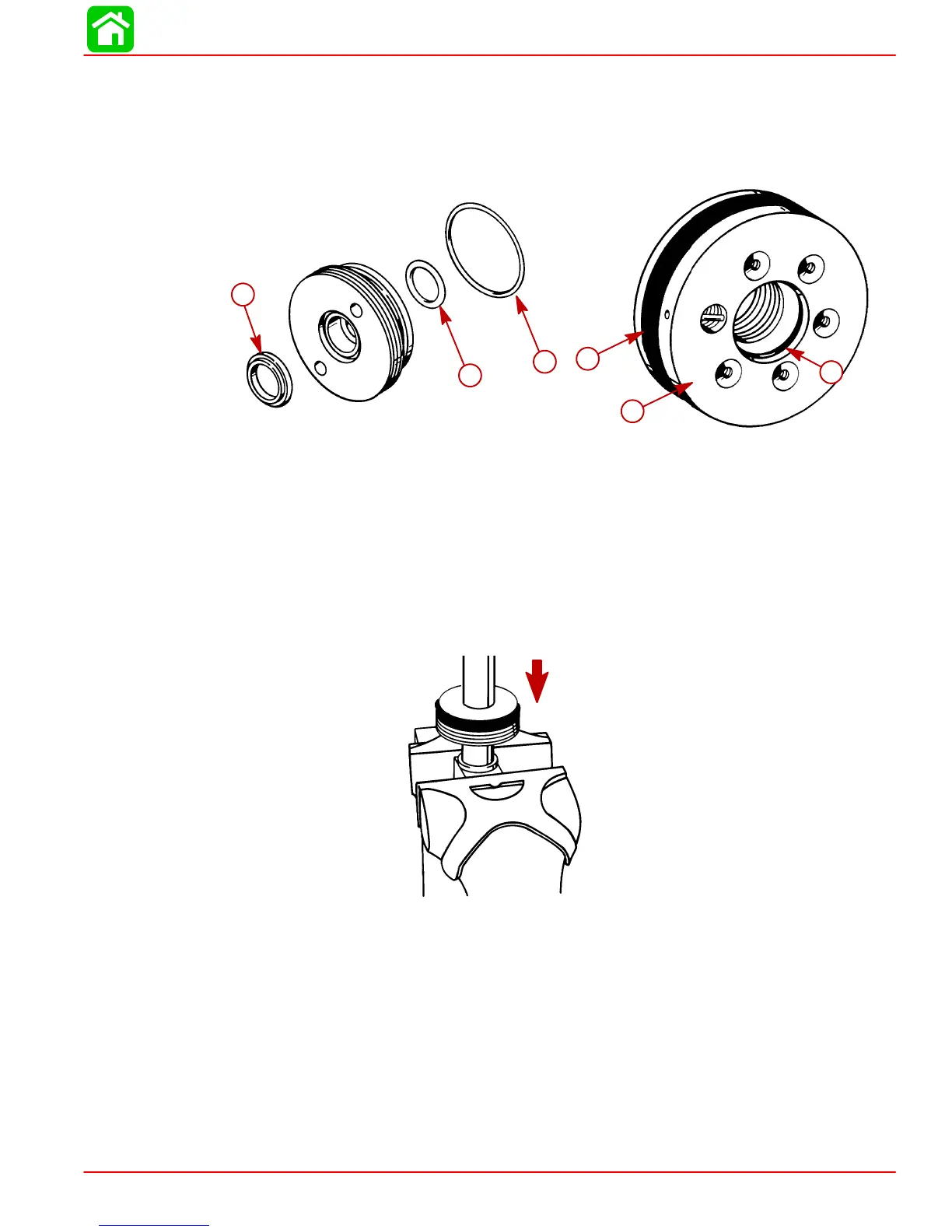

Shock Rod Reassembly
1. Install lubricated O-rings to end cap.
2. Install rod wiper.
3. Install lubricated O-rings to shock piston.
51199
f
e
d
51145
a
b
c
a-Rod Wiper
b-Inner O-ring
c-Outer O-ring
d-Shock Piston
e-O-ring
f-O-ring
4. Clamp shock rod in soft jawed vise.
5. Position cylinder end cap onto rod, as shown.
51146
