CARBURETOR
Page 3B-32 90-828631R3 MARCH 1999
Installation

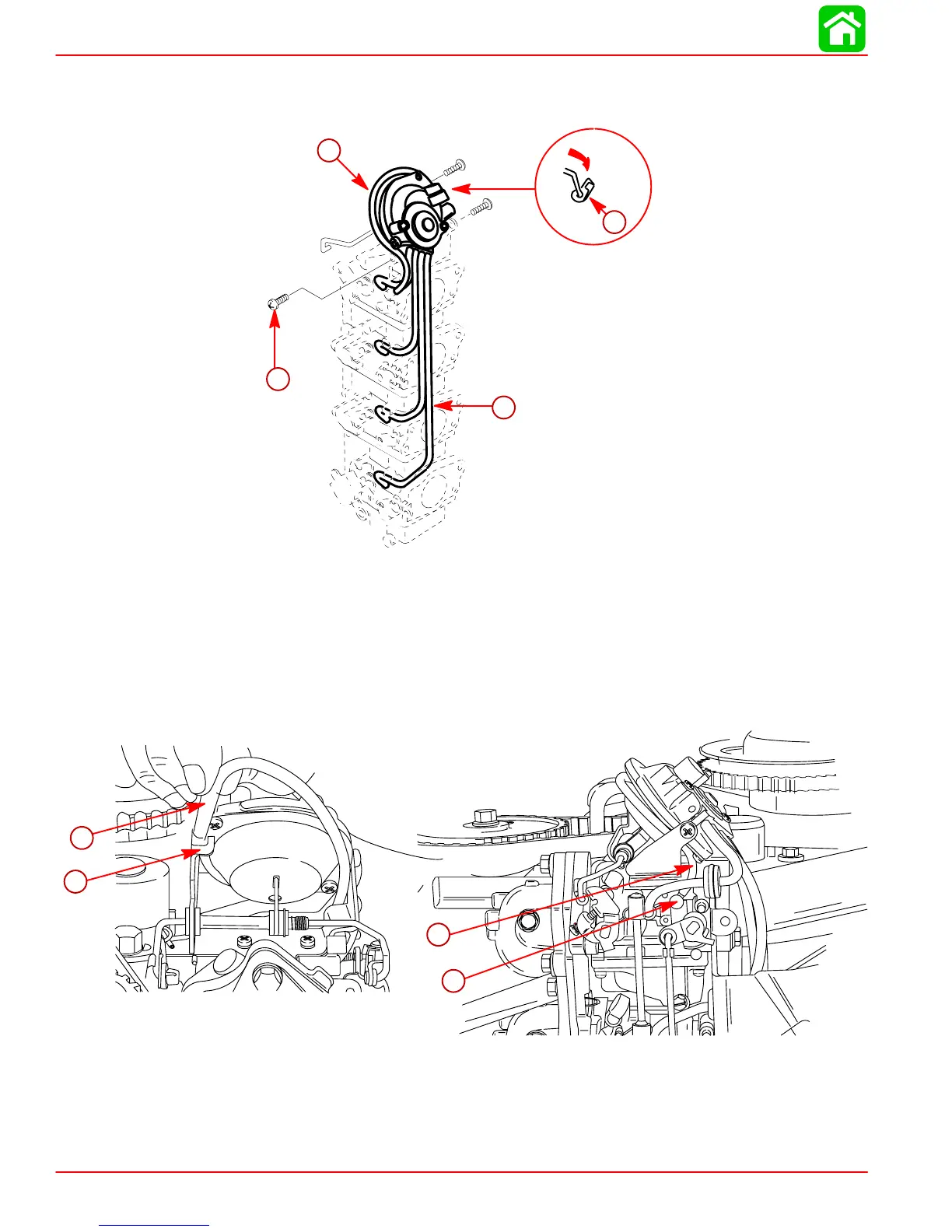

1. Secure pump link with retainer, install screws, and connect delivery hoses.
53681
a
b
d
c
a-Delivery Hoses (4)
b-Screw (3)
c-Retainer
d-Breather Hose
NOTE: On older models with breather port located on the top carburetor (#1), route breather
hose through bracket flange. If replacing top carburetor with new carburetor, breather hose
is not needed.
57265
b
a
b
c
a-Bracket Flange
b-Breather Hose
c-Breather Port
