POWER TRIM
Page 5B-46 90-828631R3 MARCH 1999

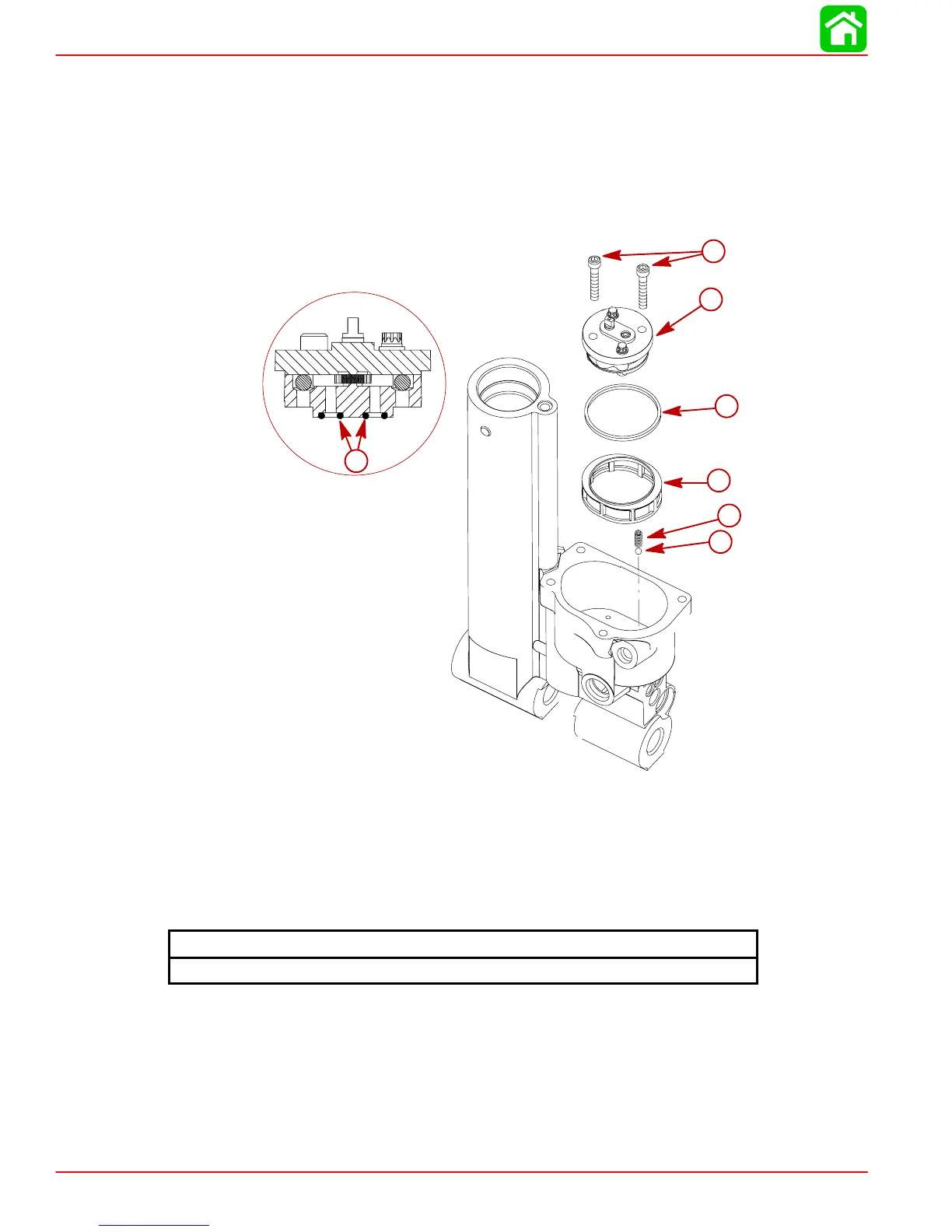

Oil Pump Reassembly
1. Install the down relief ball and spring into manifold.
2. Check to see that O-rings are placed on bottom of pump.
3. Place O-ring (square cut) on filter.
4. Place filter over the oil pump.
5. Install oil pump with two (2) screws. Torque screws to specified torque.
e
d
a
b
c
a
b
c
d
e
f
g
g
a-Screws (2)
b-Oil Pump
c-O-ring
d-Filter
e-Spring
f-Down Relief Ball
g-Pump O-Ring (2)
Screw Torque
70 lb-in. (7.9 Nm)
To Next Page
