Mercury 40 Service Manual

MANUAL TILT ASSIST
Page 5D-2 90-828631R3 MARCH 1999

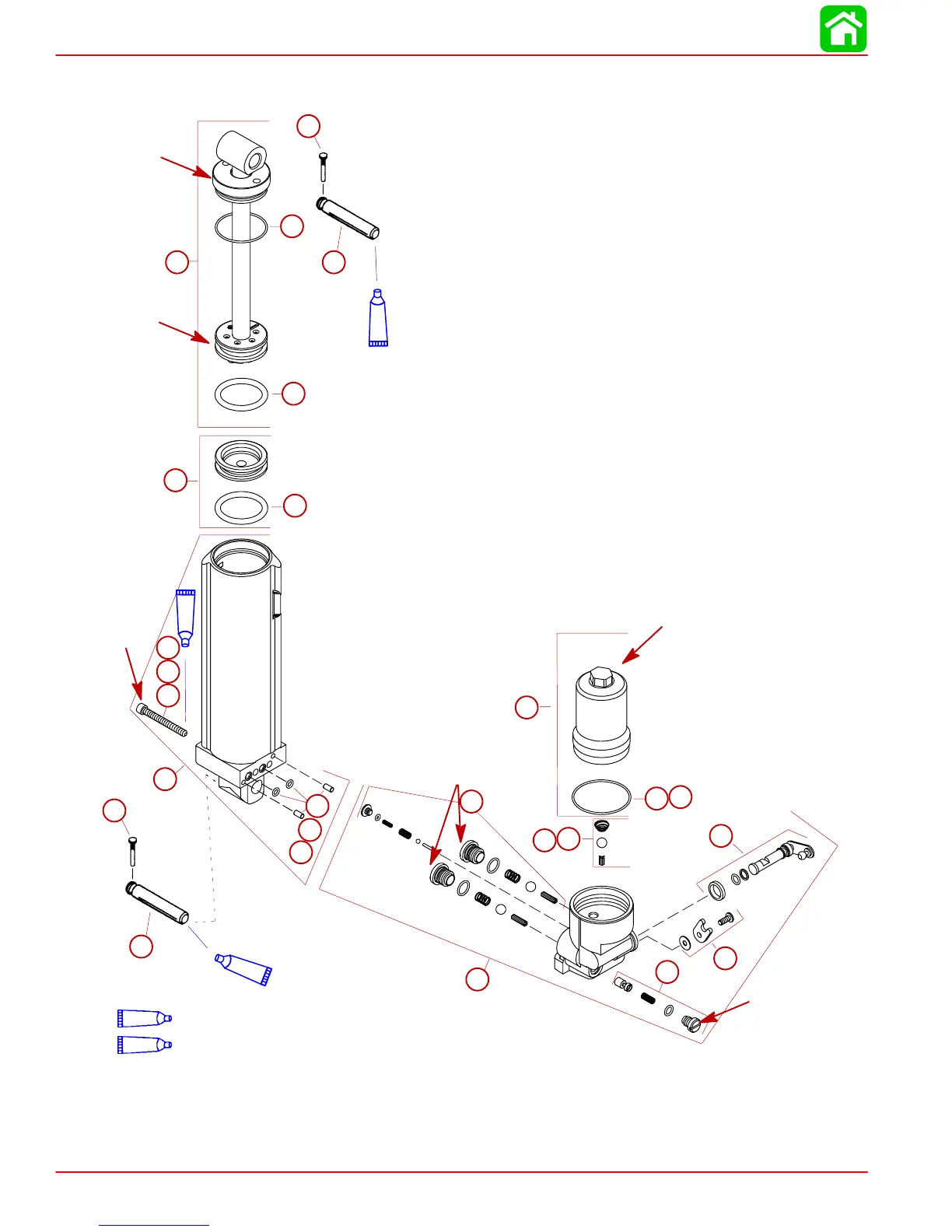

Manual Tilt Components
7
95
7 Loctite 271 (92-809819)
95
2-4-C With Teflon (92-850736A1)
95
1
13
12
3
4
4
2
7
9
9
8
11
12
13
5
8
11
8
11
10
6
8
11
6
8
11
A
F
E
D
B
C
NOTE: Lubricate all O-rings using Quicksilver Power Trim and Steering Fluid. If not avail-
able, use automotive (ATF) automatic transmission fluid.
NOTE: It is recommended that all O-rings be replaced when servicing tilt system.

Mercury 40 Specifications

General

Horsepower	40 hp
Starting System	Electric
Steering	Remote
Fuel Induction System	EFI (Electronic Fuel Injection)
Shaft Length	20"
Full Throttle RPM Range	6000
