CLAMP/SWIVEL BRACKETS & DRIVESHAFT HOUSING
90-828631R3 MARCH 1999 Page 5A-17
Co-Pilot Installation

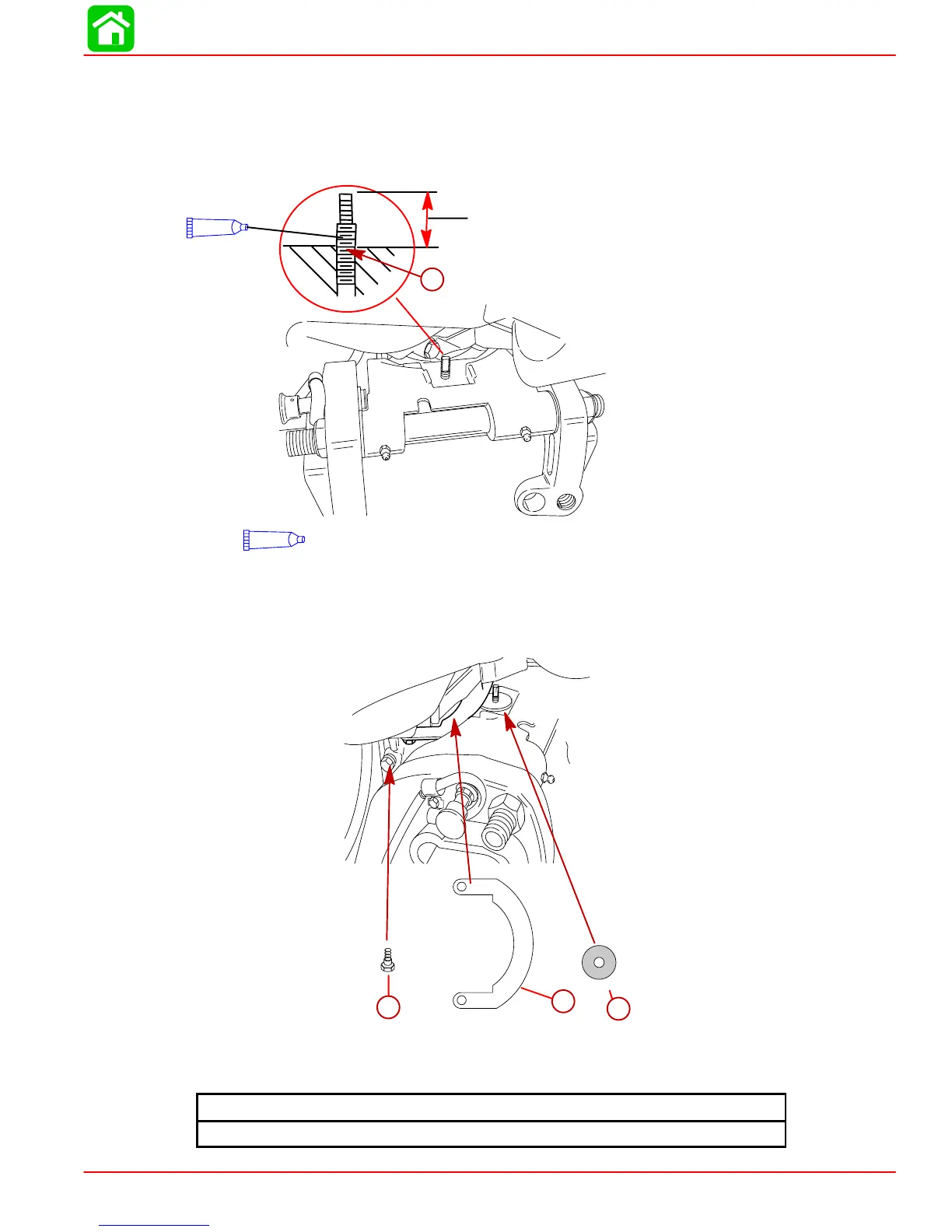

1. Apply 2-4-C Marine Lubricant with Teflon to threads on the threaded rod.
2. Thread rod into swivel bracket to a height of 7/8 in. (22.2 mm).
54275
7/8 in. (22.2 mm)
a
95
2-4-C w/Teflon (92-850736A1)
95
a-Threaded Rod
3. Install one of the brake discs on the threaded rod.
4. Install the swivel head plate with two hex shoulder screws.
a
c
b
a-Brake Disc
b-Swivel Head Plate
c-Hex Shoulder Screw (2)
Swivel Head Plate Screw Torque
70 lb-in. (8 Nm)
