WIRING DIAGRAMS
90-828631R3 MARCH 1999 Page 2D-5

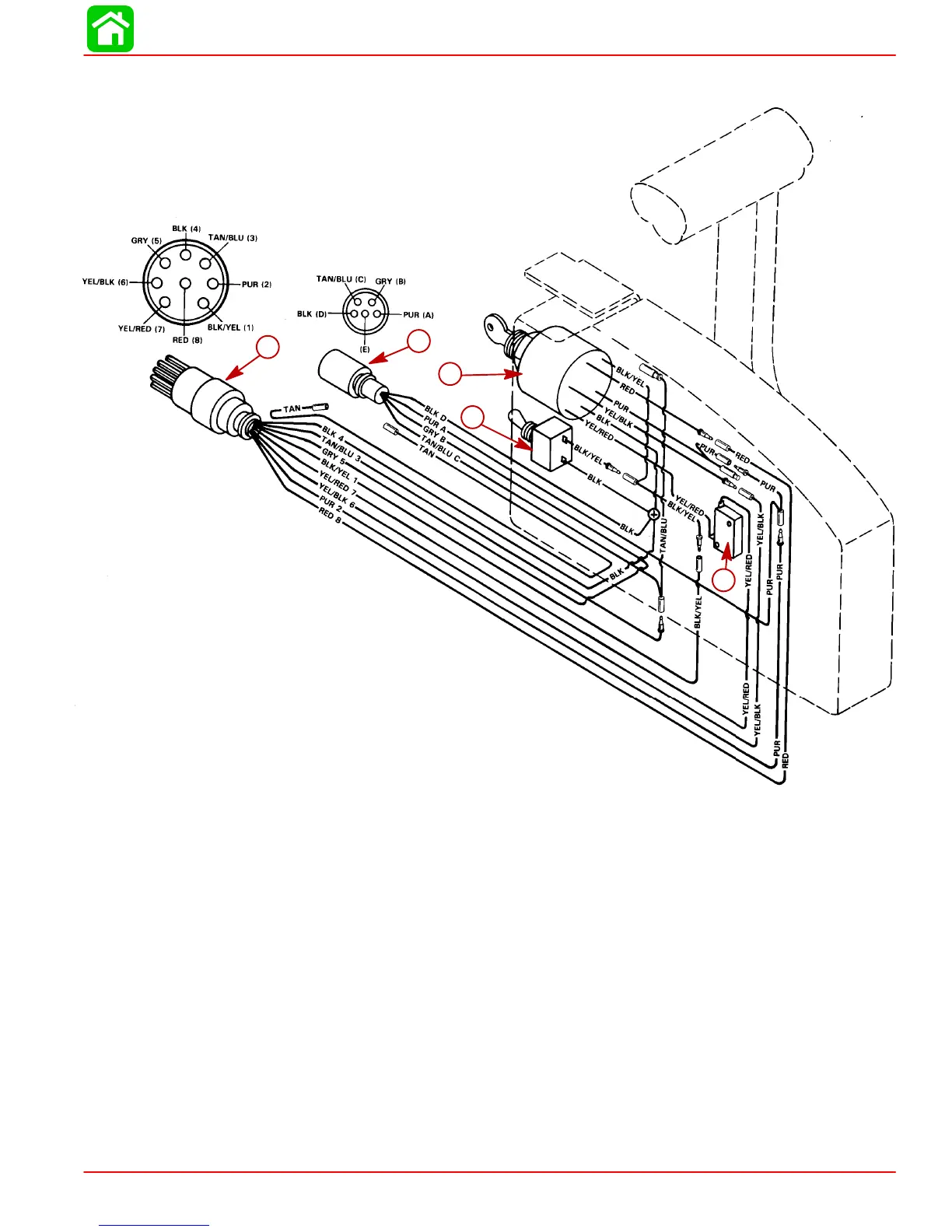

Commander 2000 Remote Control (Electric Start)
BLK = Black
BRN = Brown
GRY = Gray
GRN = Green
RED = Red
WHT = White
YEL = Yellow
a
b
c
d
e
a-Wiring Harness Connector
b-Tachometer/Accessories Harness Connector
c-Ignition/Choke Switch
d-Emergency Stop Switch
e-Neutral Start Switch
