MANUAL TILT ASSIST
Page 5D-40 90-828631R3 MARCH 1999

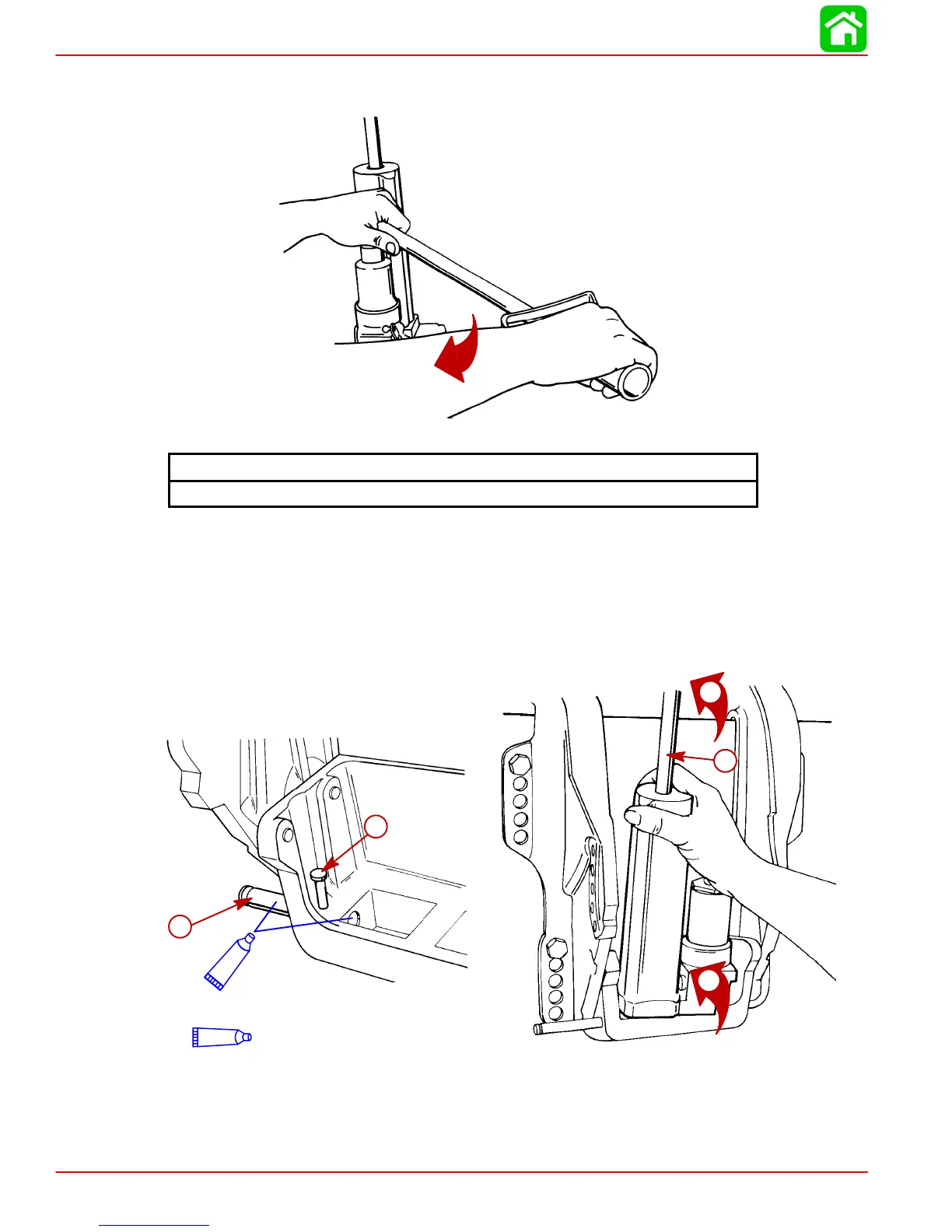

11. With cam lever remaining open (facing down), remove tilt assembly from oil and secure
in soft jawed vise. Torque accumulator to specified torque.
50433
Accumulator Torque
35 lb-ft (47 Nm)
Manual Tilt System Installation
1. Apply 2-4-C Marine Lubricant to lower pivot pin hole and pivot pin surface.
2. Start lower pivot pin into pivot pin hole and position lower dowel pin (retained) in its hole.
3. Reinstall manual tilt system, bottom first. Reconnect release valve link rod.
51144
2
1
51148
95
2-4-C w/Teflon (92-850736A1)
95
a
b
c
a-Lower Pivot Pin
b-Lower Dowel Pin
c-Manual Tilt System
