MANUAL TILT ASSIST
90-828631R3 MARCH 1999 Page 5D-41

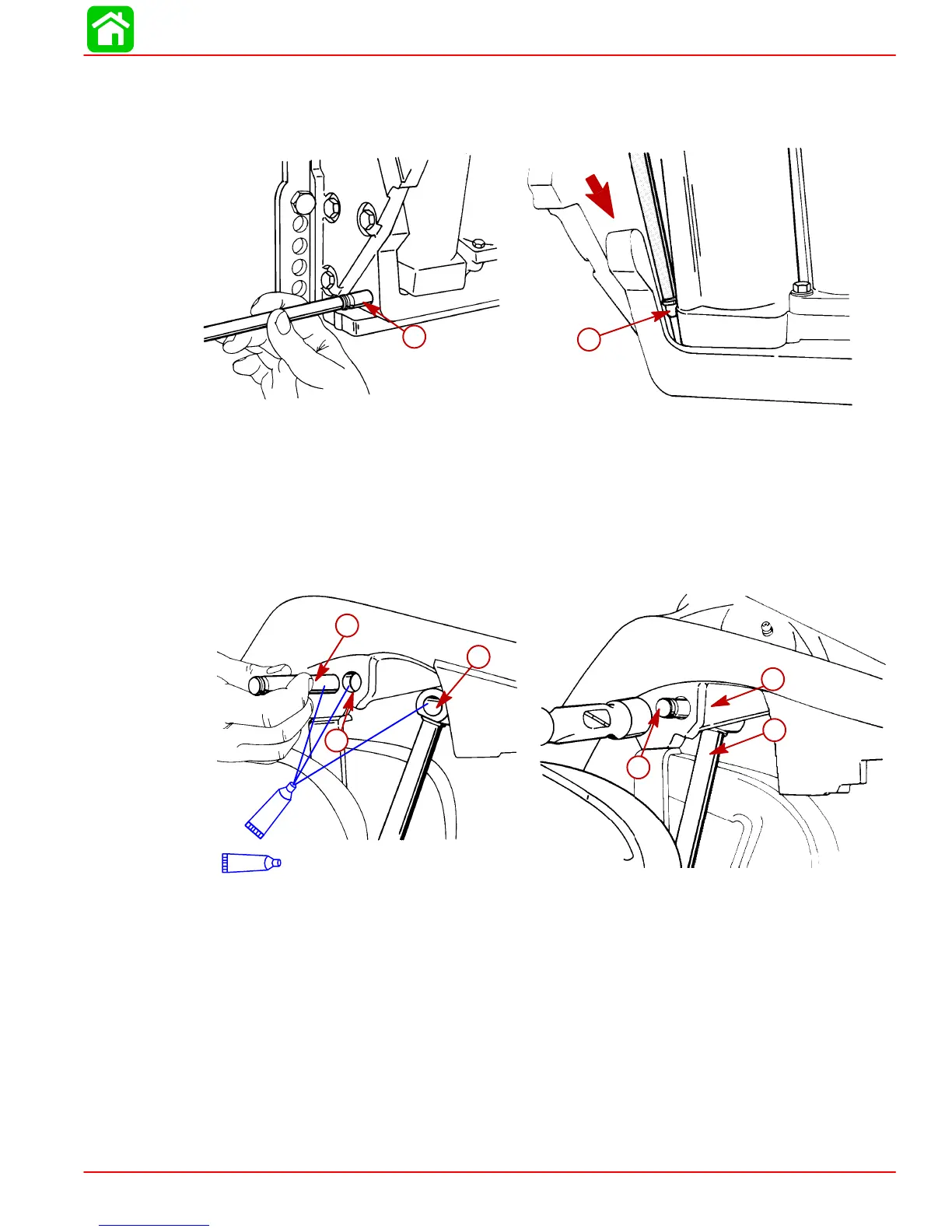

4. Using a suitable punch, drive lower pivot pin into clamp bracket and trim cylinder assem-
bly until pivot pin is flush with outside surface.
5. Using a punch, drive lower dowel pin in until seated.
51148
b
51147
a
a-Lower Pivot Pin
b-Lower Dowel Pin
6. Apply 2-4-C Marine Lubricant to surface of upper pivot pin, pivot pin hole and shock rod
hole.
7. Using a mallet, drive upper pivot pin into swivel bracket and through shock rod until pivot
pin is flush with swivel bracket.
51148
f
e
d
51148
95
2-4-C w/Teflon (92-850736A1)
95
b
c
a
a-Pivot Pin
b-Pivot Pin Bore
c-Shock Rod Bore
d-Pivot Pin
e-Swivel Bracket
f-Shock Rod
