BIGFOOT GEAR HOUSING
Page 6B-52 90-828631R3 MARCH 1999

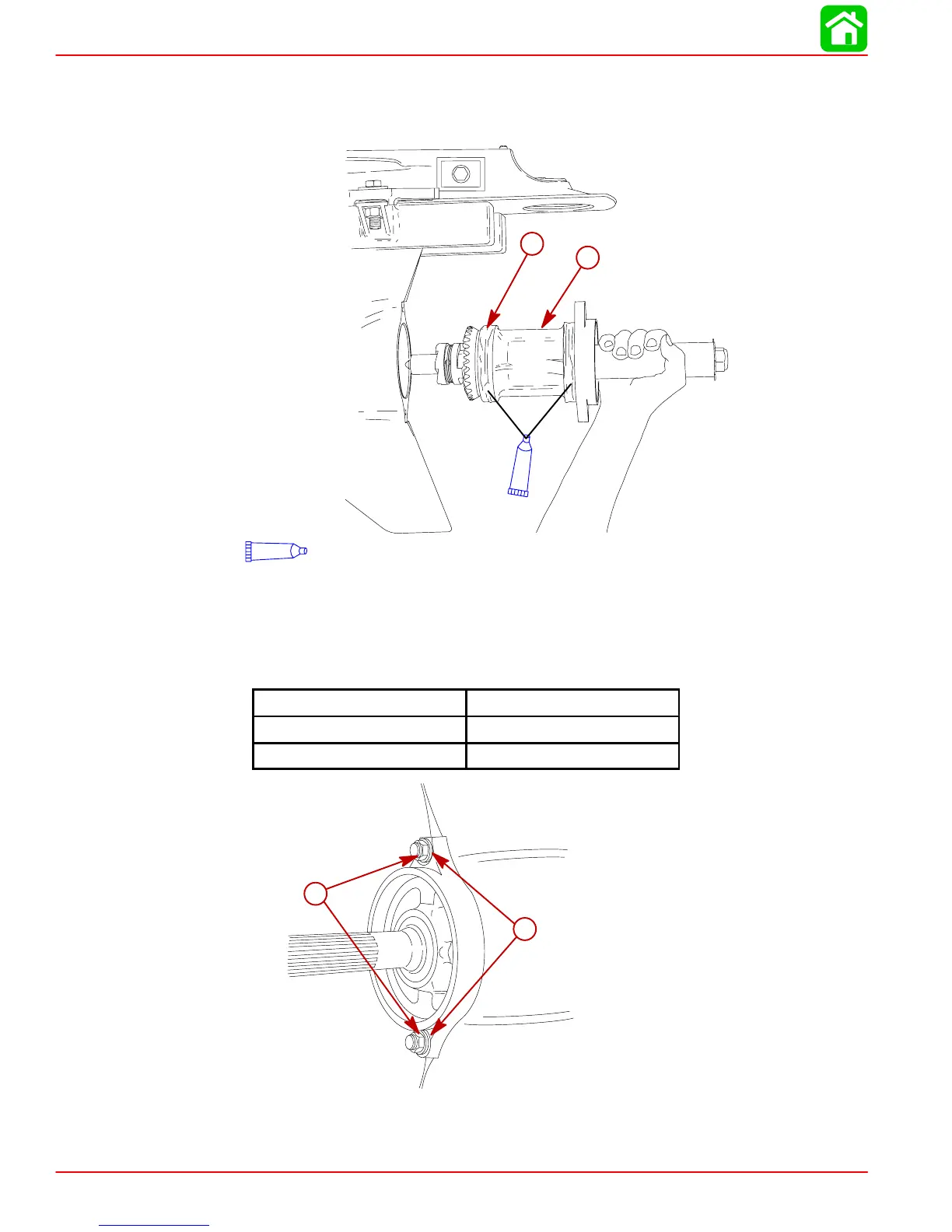

3. Lubricate O-ring and mating surfaces with 2-4-C w/Teflon.
4. Install bearing carrier and propeller shaft into housing with the word “TOP” located on
flange toward top of housing.
21044
a
b
95
2-4-C w/Teflon (92-850736A1)
95
a-O-ring
b-TOP
NOTE: Use thick 0.090 in. (2.29mm) washers (12-855941) under fasteners if not previously
installed.
Washer Thickness Fastener Torque
0.090 in. (2.29mm) 22 lb-ft (29.8 Nm)
0.060 in. (1.53mm) 25 lb-ft (33.9 Nm)
a
b
a-Washers
b-Fasteners (If using Bolts - Apply Loctite 271 on Threads)
