CARBURETOR
Page 3B-30 90-828631R3 MARCH 1999

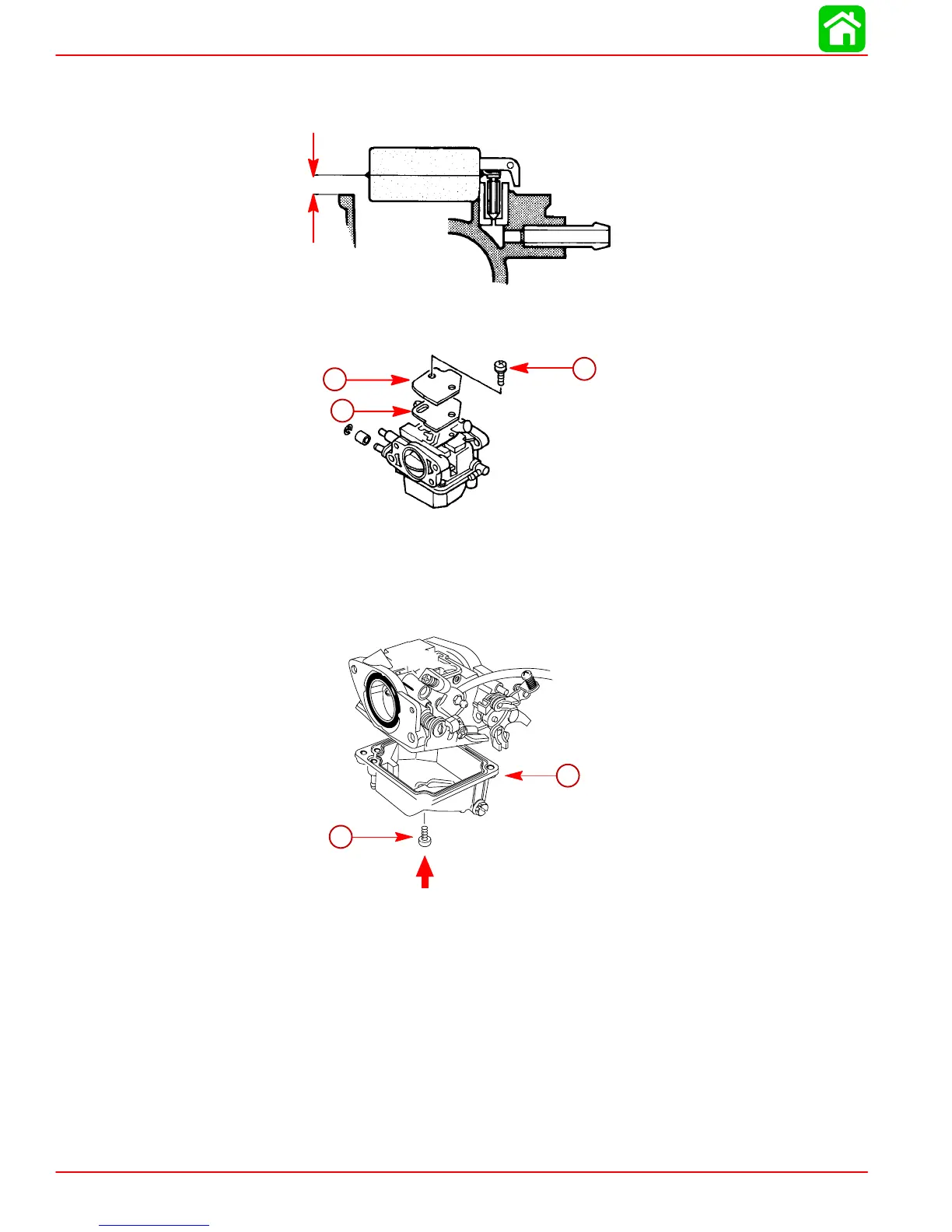

NOTE: Measure float height with carb. scale, replace float if height is not within specification
[0.39
0.02 in. (10.0
0.5mm
)]
. Take measurements at the mid-line of the float opposite its
pivot side. After installing, check for smooth movement of the float.
28380
4. Install cover and seal.
a
b
c
a-Screws (2)
b-Cover
c-Seal
5. Install float bowl.
53674
a
b
a-Screw (4)
b-Float Bowl
To Next Page
