Oil Pump Installation

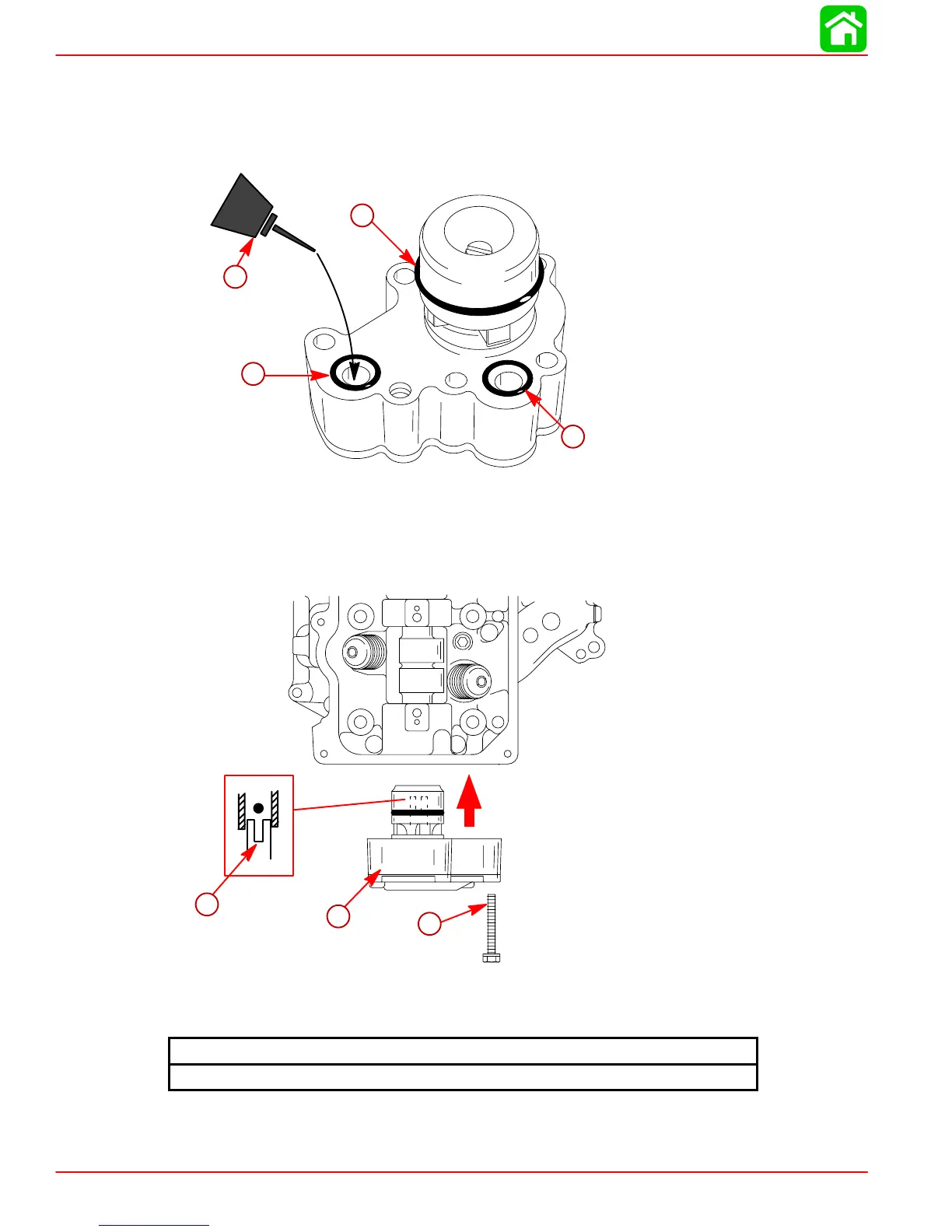

1. Place O-ring seals on the oil pump. Lubricate the O-rings with oil.
2. Prime the oil pump by pouring approximately 1 fl oz (30 ml) of engine oil into the oil pump
body.
53730
b
a
a
a
a-O-Ring Seals
b-Pour Approximately 1 fl oz (30 ml) of Engine Oil into the Oil Pump Body
3. Align oil pump shaft with the camshaft and install the oil pump.
4. Fasten with 4 bolts. Tighten bolts to the specified torque.
53738
b
a
c
a-Oil Pump Assembly
b-Align Slot with Camshaft Projection
c-Bolt (4)
Oil Pump Mounting Bolt Torque
68 lb-in. (7.6 Nm)
