CYLINDER BLOCK/CRANKCASE
Page 4B-2390-828631R3 MARCH 1999

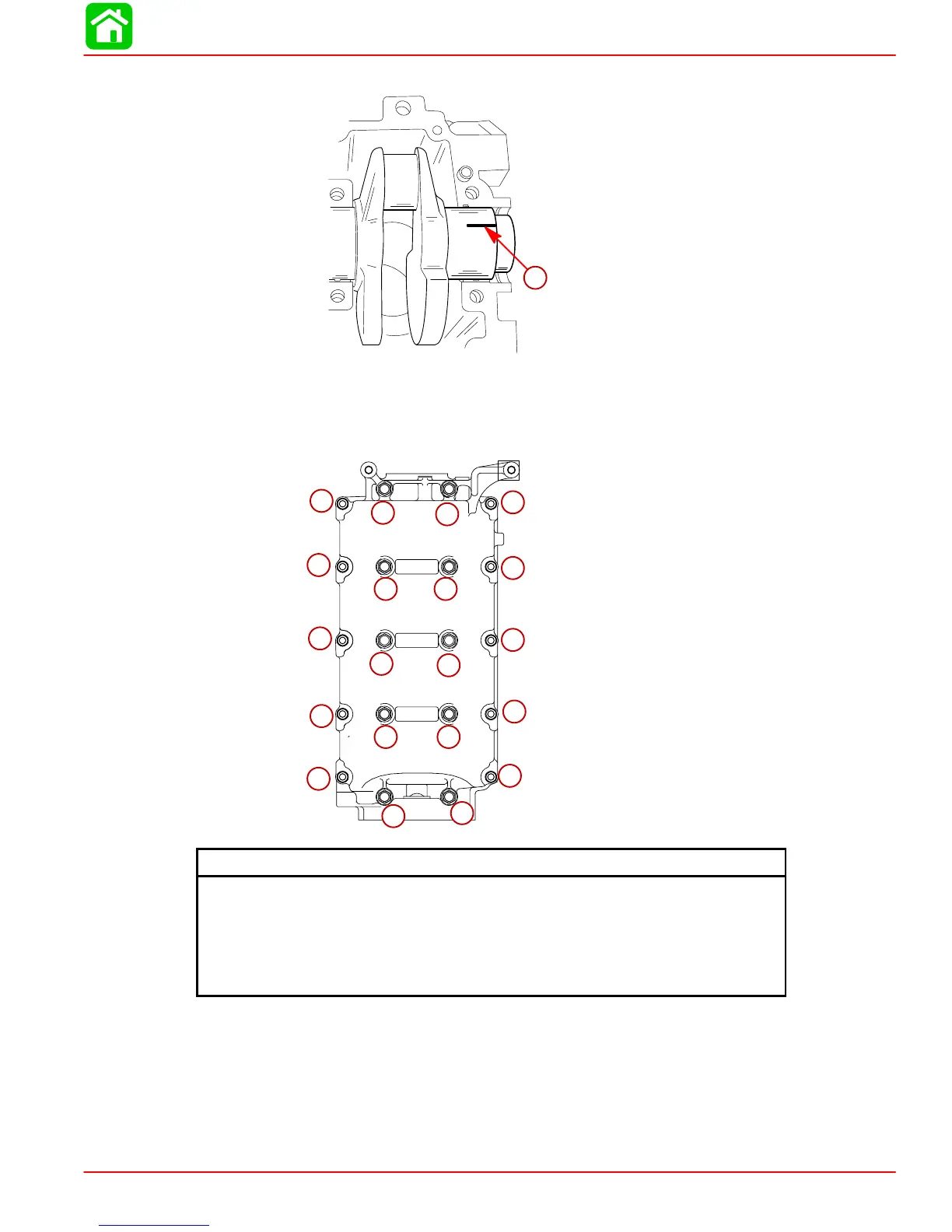

5. Place a piece of plastigauge onto each crankshaft bearing surface.
53812
a
a-Plastigauge
6. Install crankcase cover. Apply oil to the cover bolts and torque cover bolts in sequence
and in two steps.
53743
2
1
2
34
5 6
7
8
9
10
20
19
15
16
17
18
14
13
12
11
Crankcase Cover Bolt Torque
Center Bolts Qty. 10 (Larger Diameter M8)
1st: 11 lb-ft (15 Nm)
2nd: 22 lb–ft (30 Nm)
Outer Bolts Qty. 10 (Smaller Diameter M6)
1st: 53 lb–in. (6 Nm)
2nd: 106 lb-in. (12 Nm)
