CYLINDER BLOCK/CRANKCASE
Page 4B-4190-828631R3 MARCH 1999

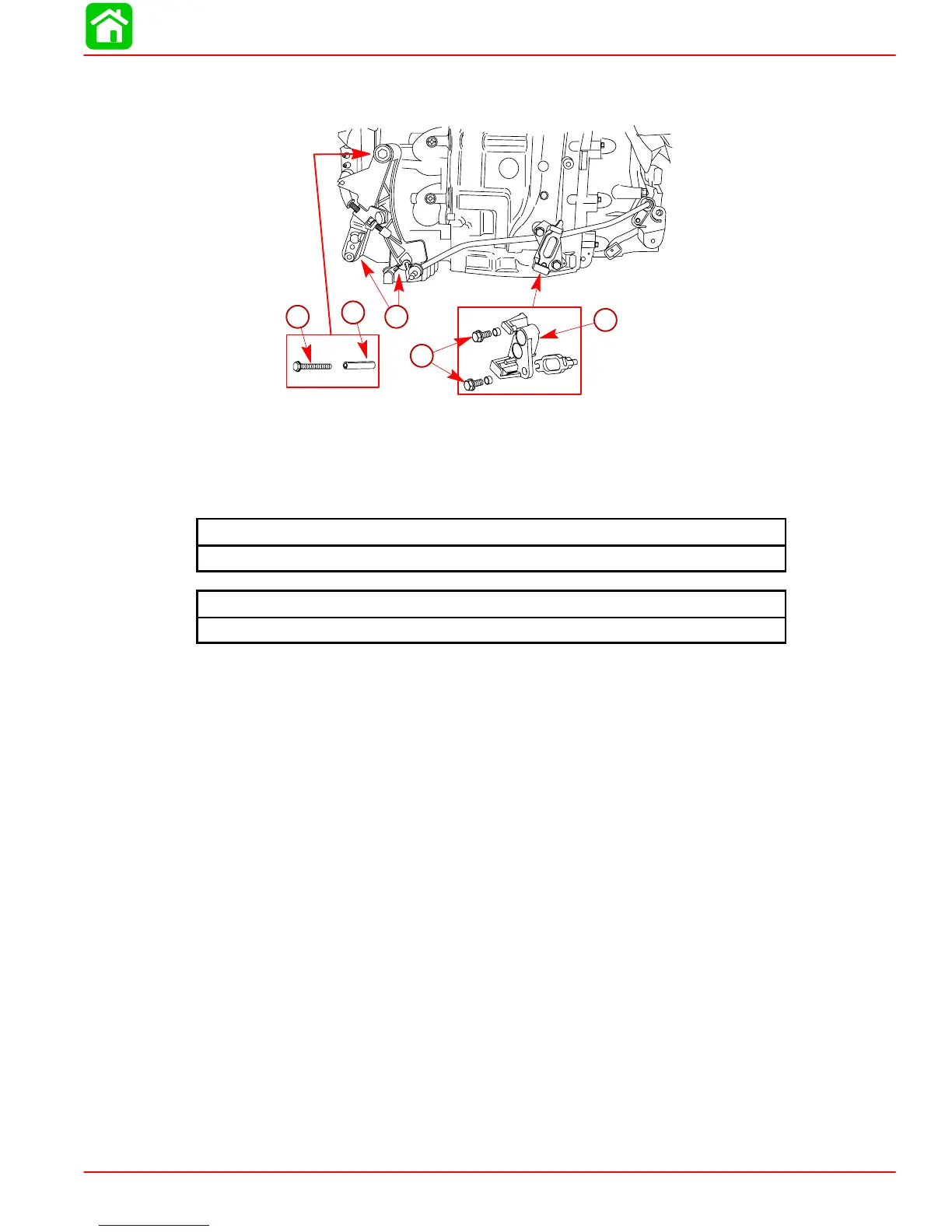

10. Install shift and throttle lever.
11. Install control cable anchor bracket.
53869
d
c
b
e
a
a-Cable Anchor Bracket
b-Shift and Throttle Lever
c-Bushing
d-Bolt (1)
e-Bolt and Bushing (2)
Shift and Throttle Lever Mounting Bolt Torque
100 lb-in. (11.3 Nm)
Cable Anchor Bracket Mounting Bolt Torque
75 lb-in. (8.5 Nm)
