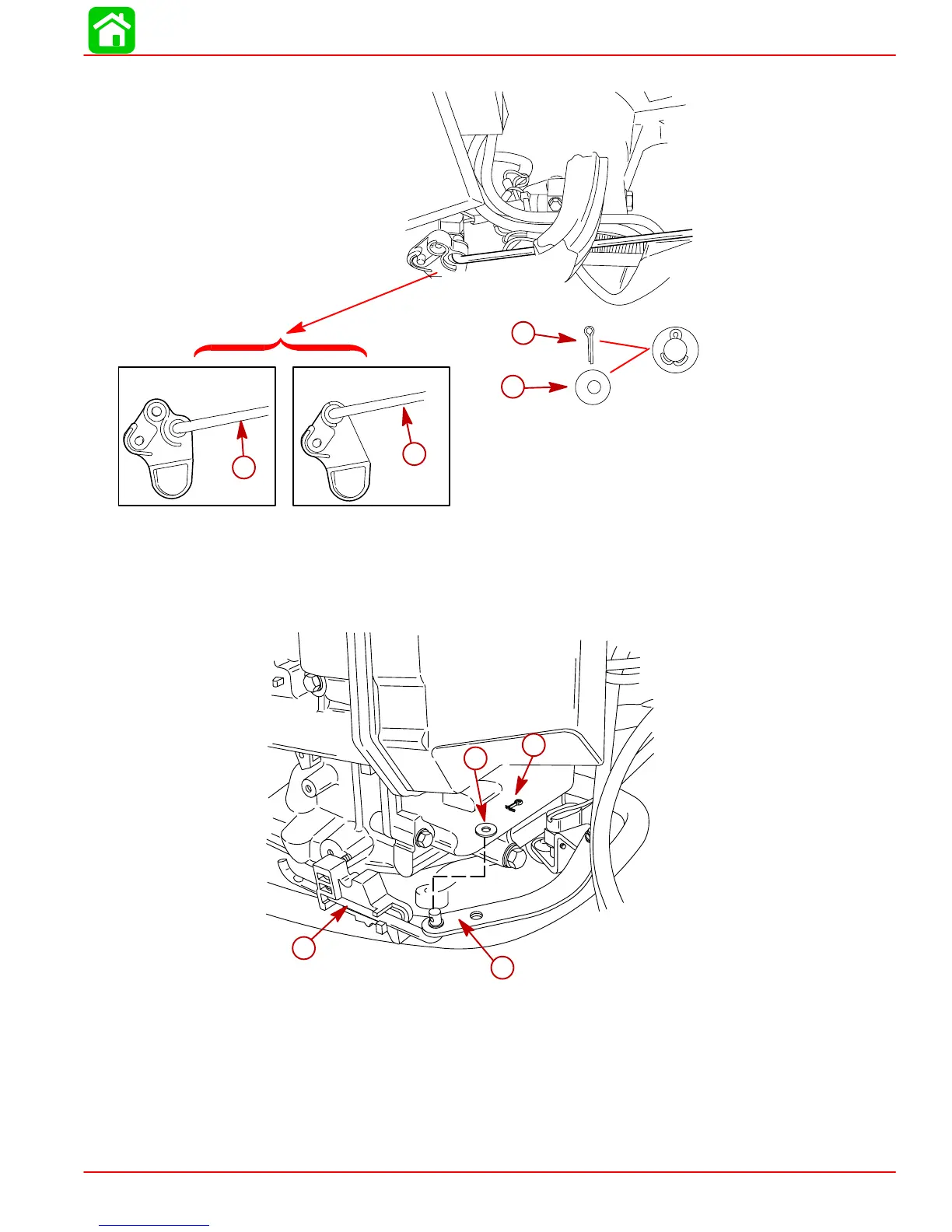

TILLER HANDLE
90-828631R3 MARCH 1999
Page 7B-21
NON-BIGFOOT
s/n 0G472132 and below
s/n 0G472133 and above
c
c
a
b
a-
Cotter Pin
b-
W
asher
c-
Shift Rod
BIGFOOT
56249
d
c
a
b
a-
Shift Rod Assembly
b-
Shift Link
c-
W
asher
d-
Cotter Pin
596
598
