Mercury 90-863160

BRAVO ONE GEAR HOUSING
SERVICE MANUAL NUMBER 28
90-863160 MAY 2000 Page 3B-15

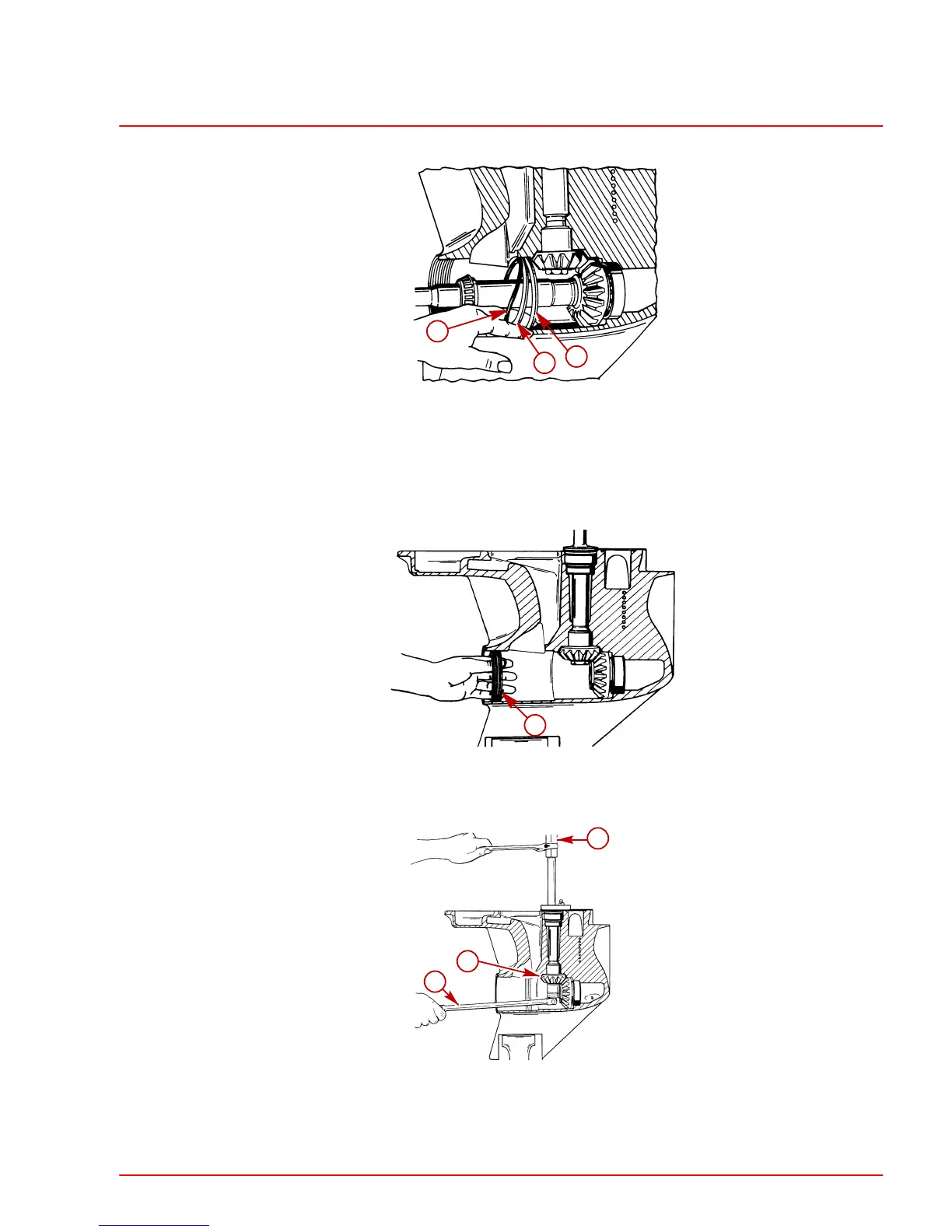

6. Remove washer, load ring and O-ring.
76829
a
b
c
a-Washer
b-Load Ring
c-O-ring
7. Temporarily reinstall bearing carrier retainer nut in gear housing to protect housing
threads.
76870
a
a-Bearing Carrier Retainer Nut
8. Remove pinion gear, screw and washer. Hold drive shaft using drive shaft adaptor tool.
a
b
c
72246
a-Drive Shaft Adaptor Tool (91-61077T)
b-Breaker Bar And Socket
c-Pinion Gear
