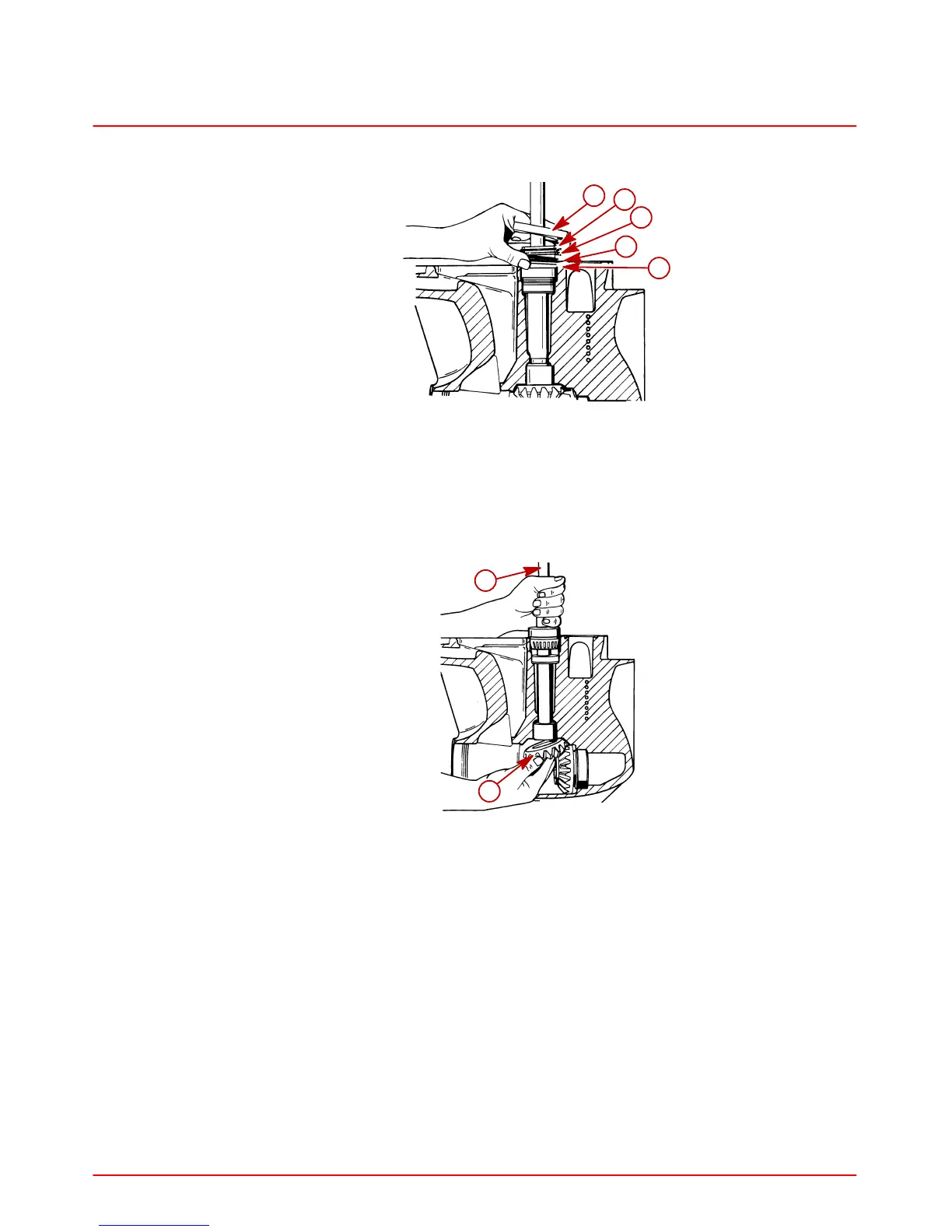

9. Remove clamp plate (installed in Step 2.), then remove O-ring, spacer, shim(s) and tab
washer. Retain shims for reassembly.
22262
a
b
c
d
e
a-Clamp Plate
b-O-Ring
c-Spacer
d-Shim(s)
e-Tab Washer
10. Remove drive shaft and pinion gear.
76871
a
b
a-Drive Shaft
b-Pinion Gear
