Mercury 90-863160

SERVICE PROCEDURES REQUIRING MAJOR DISASSEMBLY
SERVICE MANUAL NUMBER 28
90-863160 MAY 2000 Page 4B-49
10. Tighten hose clamp. Torque to 35 lb-in. (4 Nm).
11. Remove tool.

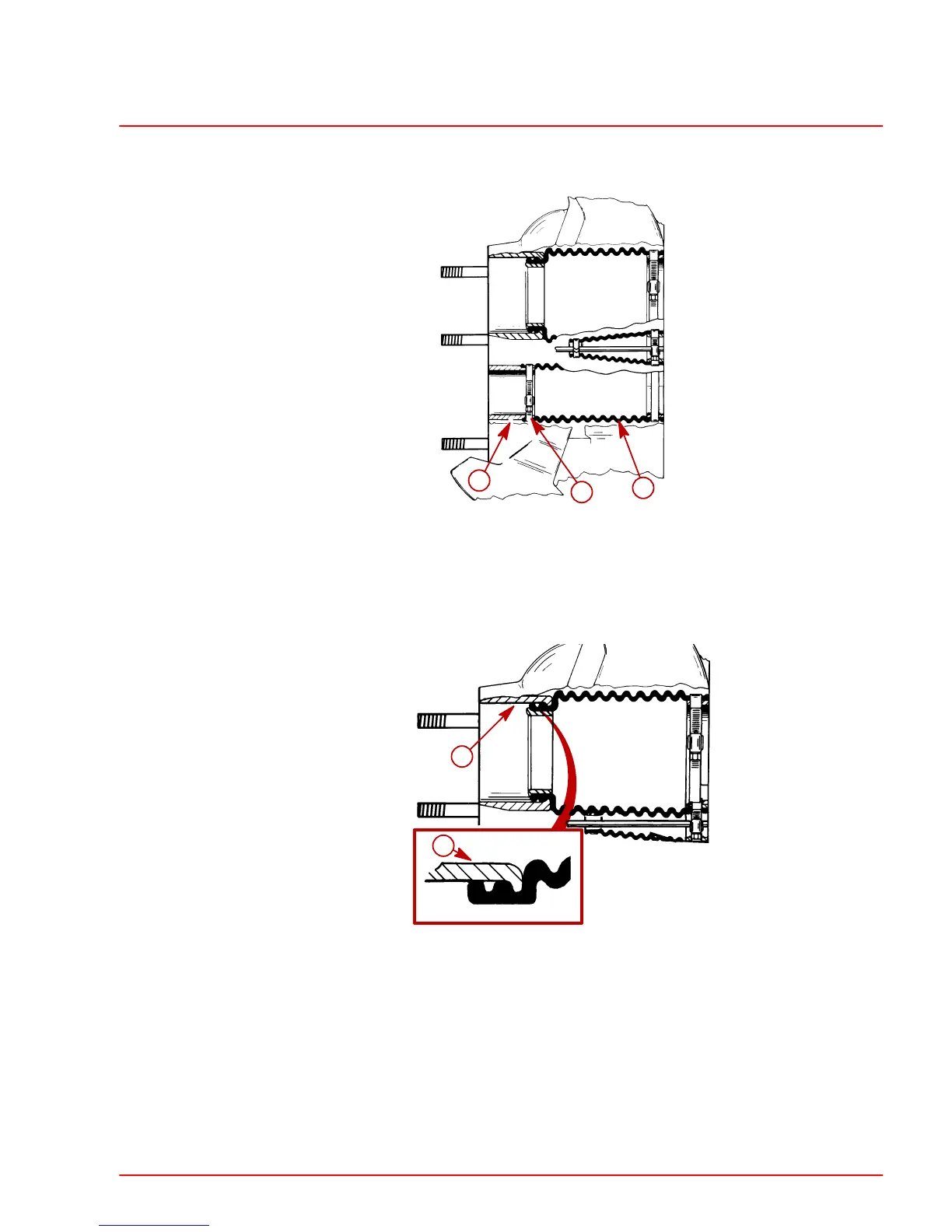

22116
a
b
c
a-Exhaust Bellows
b-Bell Housing Flange
c-Hose Clamp - Tighten Securely
12. Position U-joint bellows on bell housing. Ensure that the bell housing flange (a) rests in
the second groove from the end of bellows.
22116
a
a
a-Bell Housing Flange
