Section 3 - On the Water
90-866938081 MAY 2009 Page 47
DOCK
Dock mode reduces the percent of throttle throughout the range by 50%. This allows better
control of engine power in close quarter situations.
31464

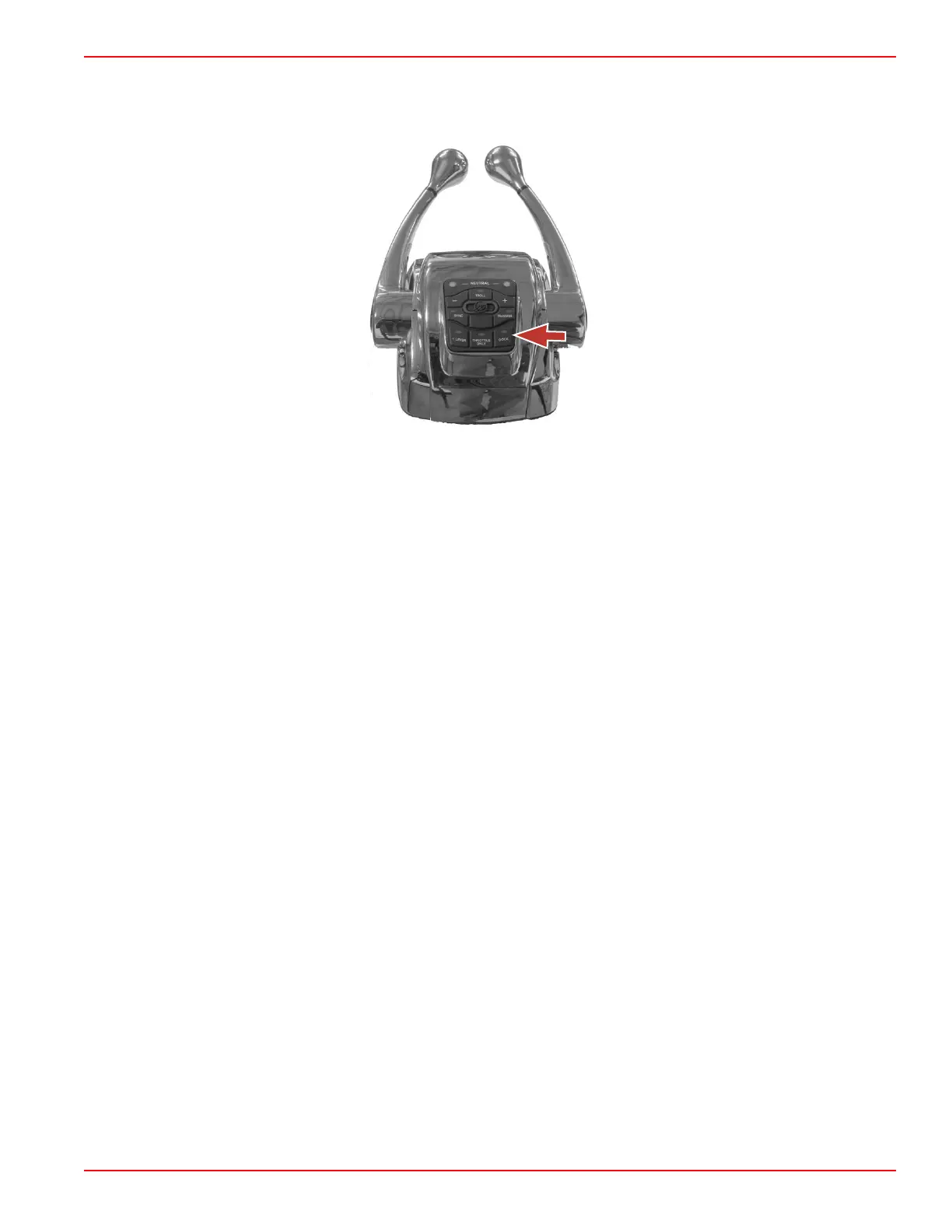

"DOCK" button
To engage Dock mode:
1. Place both ERC levers in neutral.
2. Press the "DOCK" button located on the DTS trackpad attached to the ERC levers.
3. The "DOCK" button light turns on.
4. Place either ERC lever into gear.
5. The engines raise the RPM at a proportionally lower RPM for the ERC lever position,
and with half the power that is usually available.
To disengage Dock mode:
NOTE: Dock only disengages with the levers in a detent.
1. Bring both ERC levers to forward, neutral, or reverse detent.
2. Press the "DOCK" button. Dock mode disengages and the "DOCK" button light turns
off.
THROTTLE ONLY
To engage Throttle Only mode:
1. Place both ERC levers in neutral.
