Section 5 - Maintenance
Page 88 90-866938081 MAY 2009

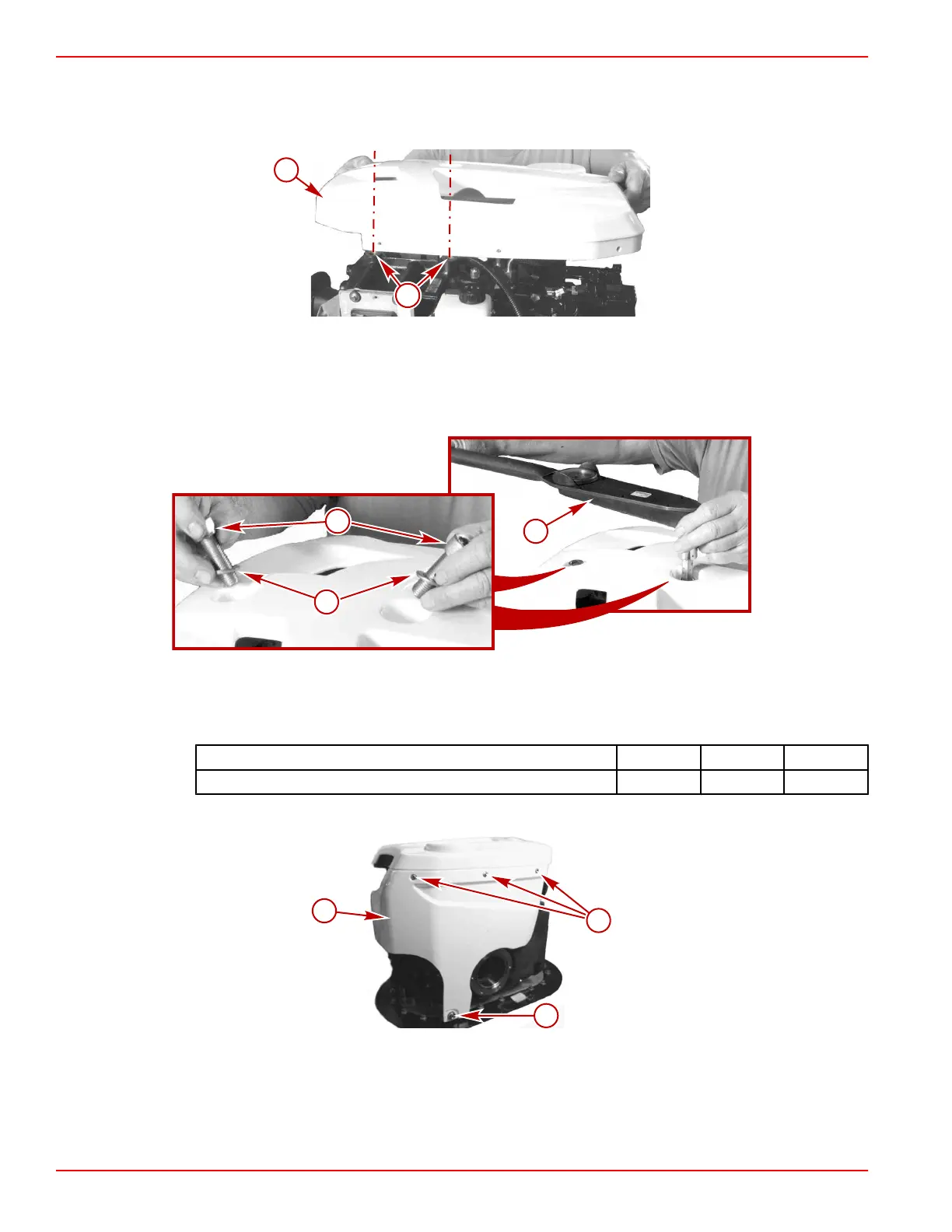

Installing the Drive Cover
1. Carefully install the top cover on the drive. Align the cover with the two threaded holes
in the transmission where the lifting rings were removed.
a - Top cover
b - Threaded holes
2. Install one large washer on each of the top cover screws.
3. Install the two screws. Tighten the screws to specification.
a - Top cover screw
b - Washer
c - Torque wrench
Description Nm lb‑in. lb‑ft
Top cover screw 61 – 45
4. Install the starboard side cover using four screws.
a - Starboard cover
b - Screw (4)
5. Align and insert the starboard cover into the groove of the H‑trim section on the port
cover.
