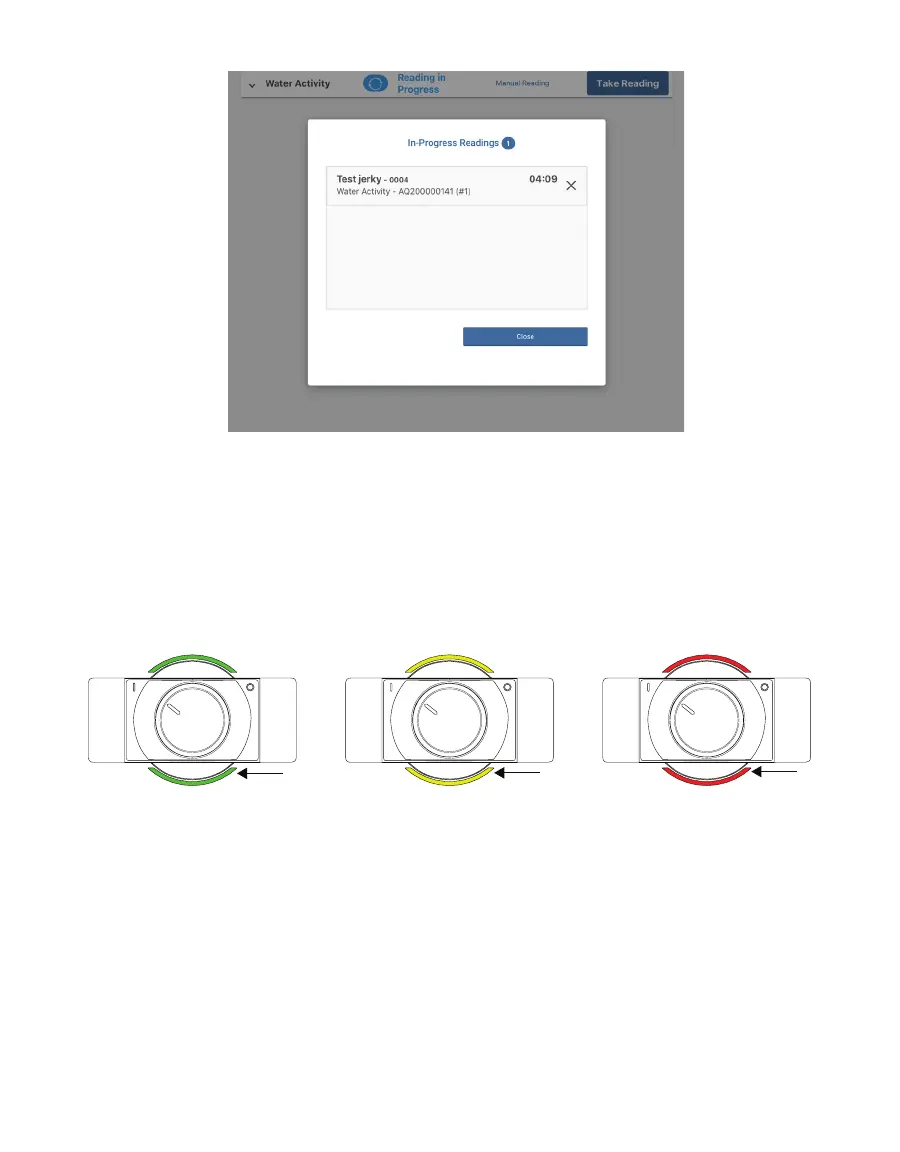

Figure57 In Progress Reading popup window
12. Select the Close button to close the In-Progress dialog window and return to the
readings window (Figure57).
13. When the reading is finished, a dialog box will appear in SKALA Mobile with test details
(Table 2).
The AQUALAB3 indicator light (Figure58) will turn either a solid green, yellow, or red,
indicating the knob should be turned towards the Open position. The color signal
corresponds to the reading received and should match the result in the SKALA Mobile dialog.
Closed Open
Test results are out of specificiation
but within defined critical control point
Drawer
knob
Indicator
light
Test results within specification
Closed Open
Drawer
knob
Indicator
light
Closed Open
Test results are outside of
defined critical control point
Drawer
knob
Indicato
r
light
Figure58 Front-panel indicator light
Table 2 shows the water activity reading indicators.
