MI 3125 / BT EurotestCOMBO Data handling
59

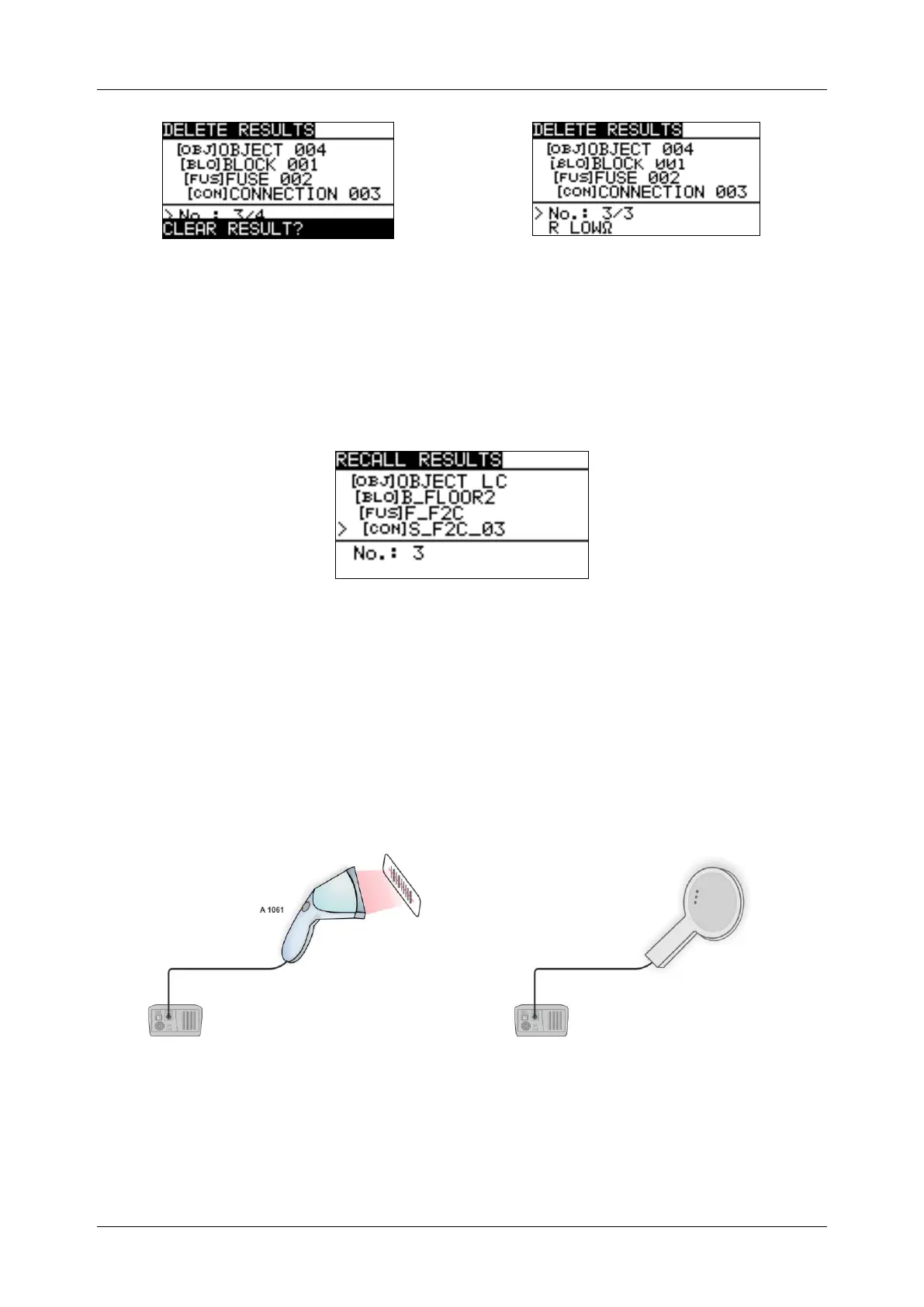

Figure 6.10: Dialog for confirmation
Figure 6.11: Display after measurement
was cleared
6.5.4 Renaming installation structure elements (upload from PC)
Default installation structure elements are “Object”, “Block”, “Fuse” and “Connection”.
In the PCSW package Eurolink-PRO default names can be changed with customized
names that corresponds the installation under test. Refer to PCSW Eurolink-PRO
HELP for information how to upload customized installation names to the instrument.
Figure 6.12: Example of menu with customized installation structure names
6.5.5 Renaming installation structure elements with serial barcode
reader or RFID reader
Default installation structure elements are “Object”, “Block”, “Fuse” and “Connection”.
When the instrument is in the Save results menu location ID can be scanned from a
barcode label with the barcode reader or can be read from a RFID tag with the RFID
reader.
Figure 6.13: Connection of the barcode reader and RFID reader
