5.2 Insulation resistance
The Insulation resistance measurement is performed in order to ensure safety against
electric shock through insulation. It is covered by the EN 61557-2 standard. Typical
applications are:
 Insulation resistance between conductors of installation,
 Insulation resistance of non-conductive rooms (walls and floors),
 Insulation resistance of ground cables,
 Resistance of semi-conductive (antistatic) floors.
See chapter 4.1 Function selection for instructions on
key functionality.

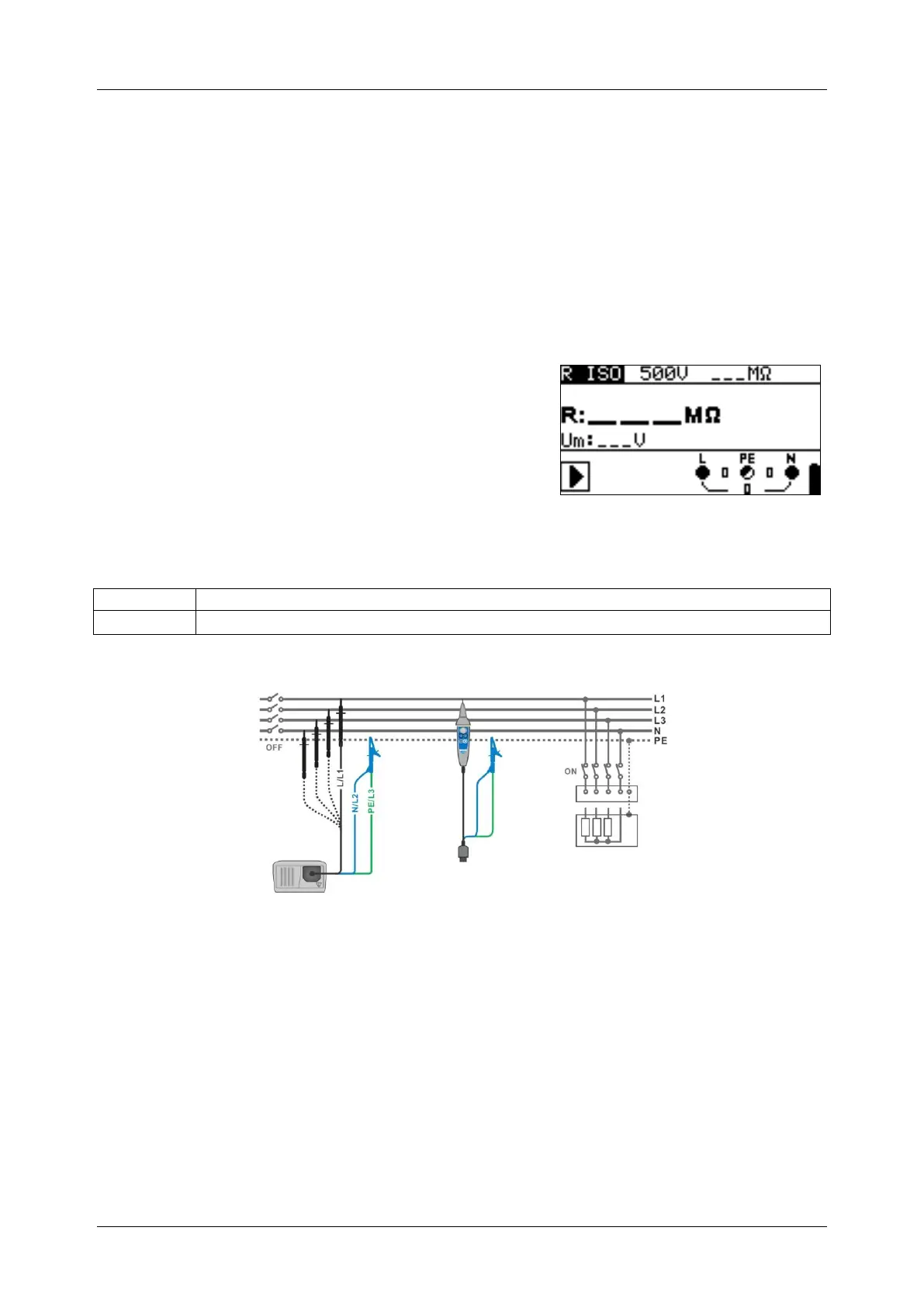

Figure 5.5: Insulation resistance
Test parameters for insulation resistance measurement
Uiso
Test voltage [50 V, 100 V, 250 V, 500 V, 1000 V]
Limit
Minimum insulation resistance [OFF, 0.01 M ÷ 200 M]
Test circuits for insulation resistance
Figure 5.6: Connections for insulation measurement
