METREL EurotestCOMBO MI 3125 User Manual

MI 3125 / BT EurotestCOMBO Instrument description
16
3.2 Connector panel

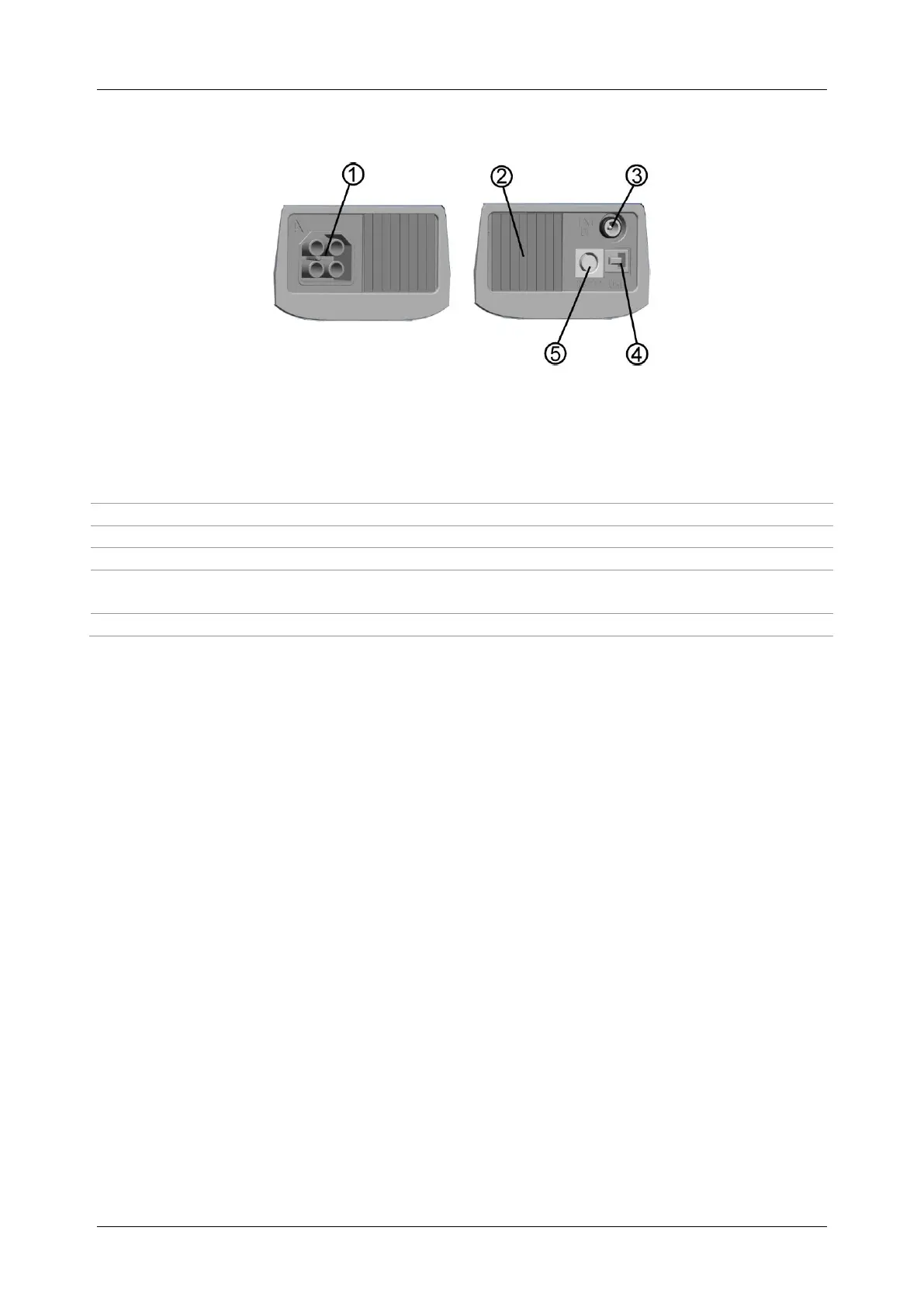

Figure 3.2: Connector panel (picture of MI 3125 BT)
Legend:
* Model MI 3125 BT
** Model MI 3125
1
Test connector
Measuring inputs / outputs
2
Protection cover
3
Charger socket
4*
USB connector
Communication with PC USB (1.1) port.
5*
PS/2 connector
Communication with PC serial port and connection to optional
accessories.
5**
PS/2 connector
Serial port for upgrading the instrument.
Warnings!
 Maximum allowed voltage between any test terminal and ground is 600 V!
 Maximum allowed voltage between test terminals is 600 V!
 Maximum short-term voltage of external power supply adapter is 14 V!
