3.3 Back side

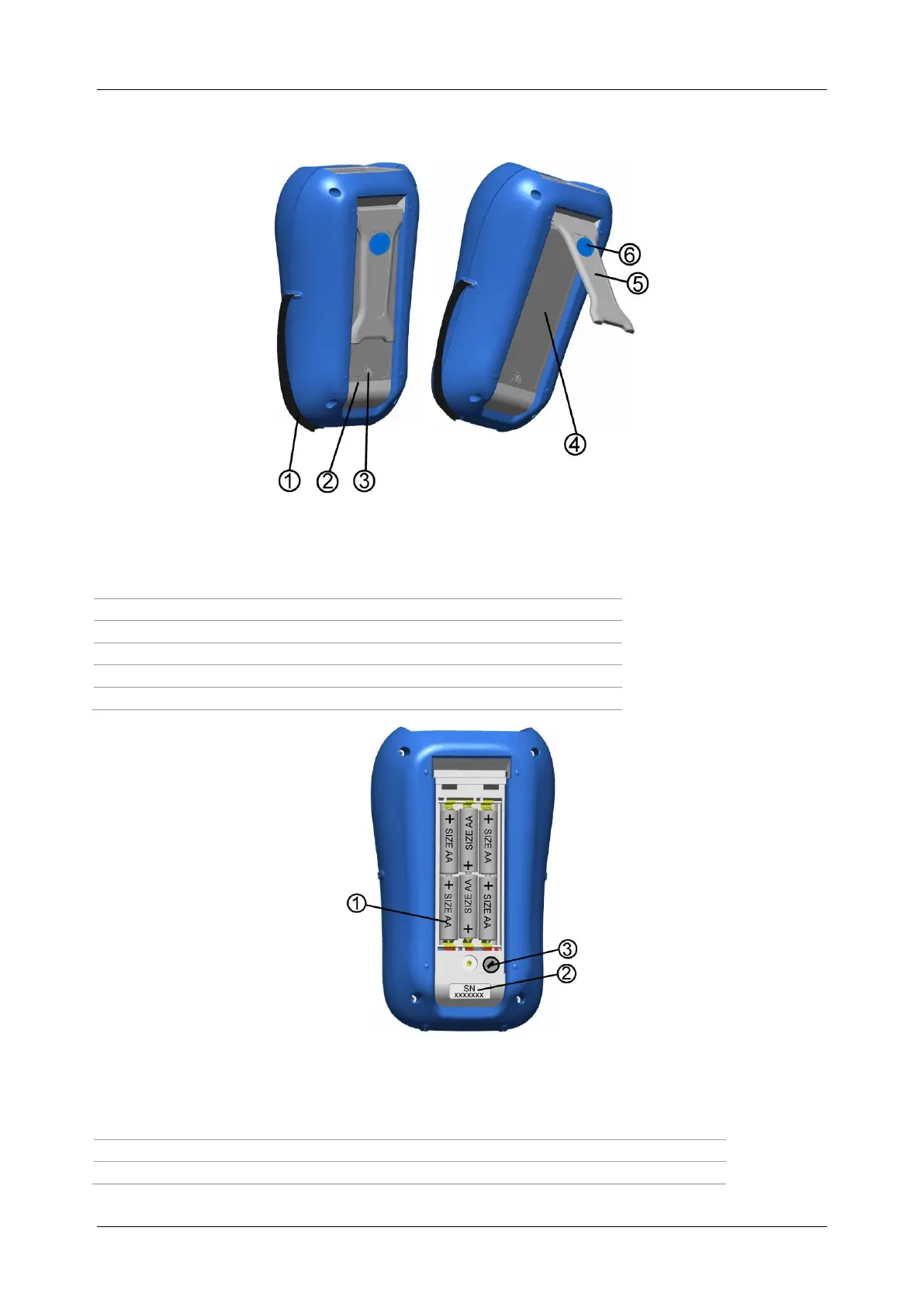

Figure 3.3: Back side
Legend:
1
Side belt
2
Battery compartment cover
3
Fixing screw for battery compartment cover
4
Back panel information label
5
Holder for inclined position of the instrument
6
Magnet for fixing instrument close to tested item (optional)
Figure 3.4: Battery compartment
Legend:
1
Battery cells
Size AA, alkaline or rechargeable NiMH / NiCd
2
Serial number label
3
Fuse
M 0.315 A, 250 V
