4 Operation and maintenance
883 Basic IC plus
￭￭￭￭￭￭￭￭
63
3

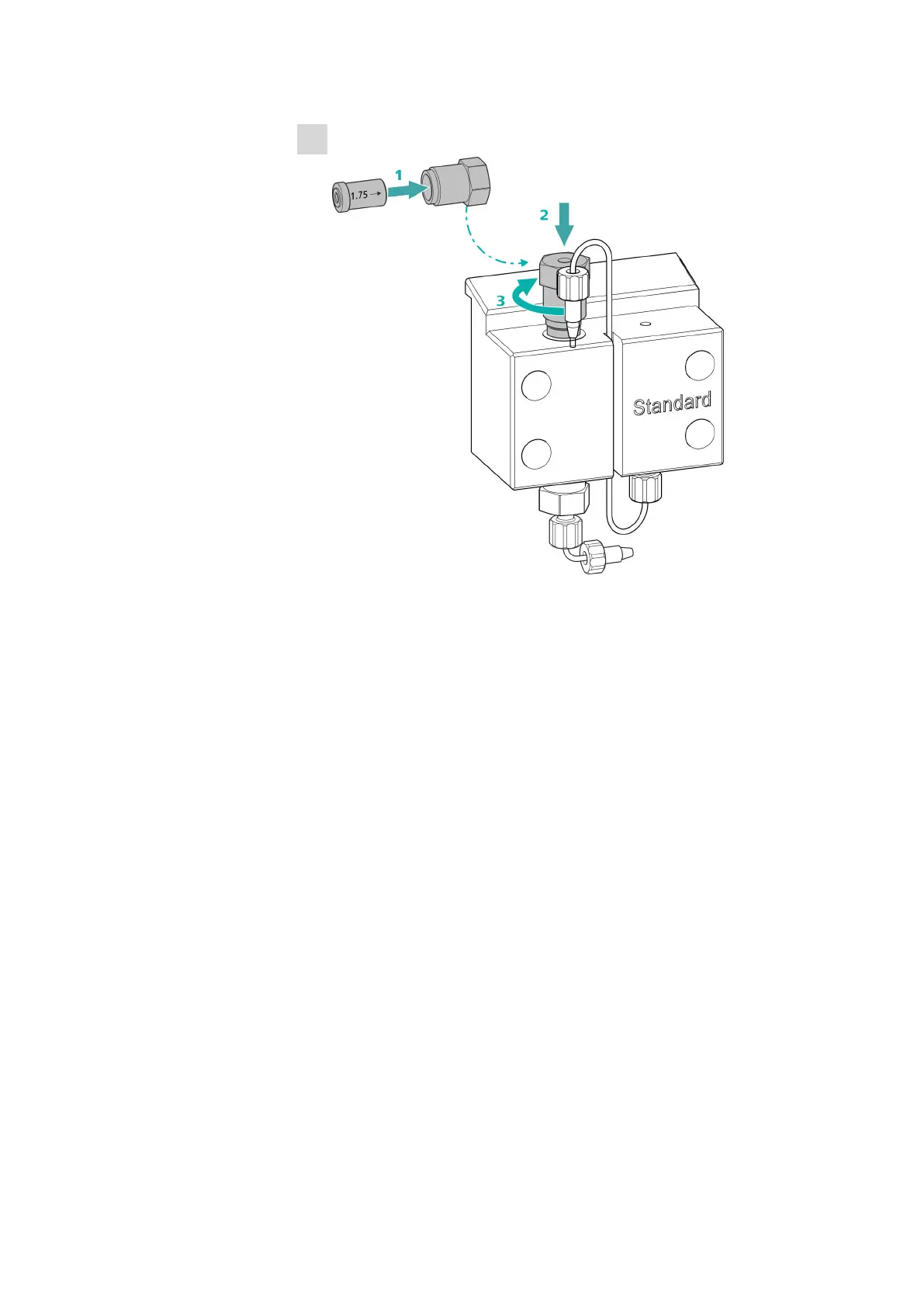

Reinserting the outlet valve into the pump head
￭ Insert the outlet valve into the outlet valve holder (the seal must
be visible) (1).
￭ Screw the outlet valve holder up into the pump head (2) and
tighten it firmly by hand and then retighten it one additional ¼
turn using the adjustable wrench (3).
￭ Tighten the connection capillary to the auxiliary piston back onto
the outlet valve holder.
